ID
1334806
$ 1,896.01
1-2 weeks delivery time
-
+
The Jabsco 6400-0004 flexible impeller engine cooling pump delivers a nominal flow rate of 235 litres/min (62 gallons/min) at 1750 rpm and is built for dependable marine and general-purpose pumping. Its bronze construction, Neoprene impeller, and carbon/ceramic mechanical seal support durable operation, while 1-1/4 inch NPT internal ports simplify plumbing integration. The pump self-primes at low or high speeds, can be mounted in any position, and pumps in either direction with equal efficiency for flexible installation and service.
- Description
- Ask a Question
-

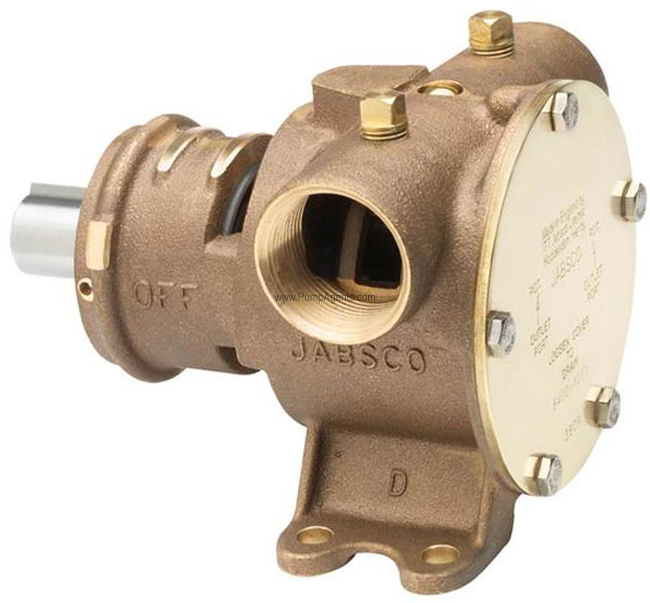

Jabsco 6400-0004 Flexible Impeller Cooling Pump Unit
The Jabsco 6400-0004 is a full cam, standard shaft engine cooling pump designed around a flexible impeller to support dependable circulation and transfer duties. Its bronze pump body and flexible impeller design are aimed at efficient performance across a wide range of liquids, including thin and viscous fluids and liquids with suspended solids.
Application
- Engine cooling
- Washdown
- Circulation
- General-purpose onboard or dockside pumping
- Bilge pumping
- Water circulation
- Transferring liquids
Technical Specifications
Part Number 6400-0004 Pump Type Full Cam Flexible Impeller Pump (Bare Shafted Pedestal Pump End Only) Nominal Flow Rate 235 litres/min (62 gallons/min) at 1750 rpm Priming Primes at low or high speeds Vertical Dry Suction Lift 10 feet (3.0mm) with a minimum of 800 rpm Suction Lift (When Wetted) Up to 22 feet (6.7 m) Maximum Pressure (Continuous) 30 psi Pressure Range (Intermittent Service) 35 to 50 psi with 807-1001 high-pressure impeller plus an extra gasket Impeller Material Neoprene Impeller Temperature Limits 45°F to 180°F (7°C to 82°C) Pump Body Material Bronze Shaft Material Stainless steel Shaft Seal Carbon/ceramic mechanical seal Port Size 1-1/4 inch NPT internal Bearing Double row ball bearing
Product Details
- Bidirectional pumping: Pumps in either direction with equal efficiency.
- Flexible installation: Can be mounted at any angle and may be mounted in any position.
- Port orientation: The rotation of the pump shaft determines the intake and discharge port locations; the pump is normally assembled at the factory for clockwise rotation.
- Lubrication requirement: This unit depends on the liquid being pumped for lubrication.
- Dry-run limit: Do not run dry for more than 30 seconds to avoid impeller and component damage.
- Self-priming note: Suction lines must be airtight or the pump will not self-prime.
- Fluid note: The Neoprene impeller is suitable for water and general-purpose pumping; if there is any oil in the water, a nitrile impeller is recommended (see parts list).
Features
- Combines the priming capability of positive displacement pumps with the general transfer ability of centrifugal pumps
- Handles more solids in suspension than other types of rotary pumps
- Will tolerate abrasive wear
- Handles hard and soft solids without clogging
- Will not airlock
- Easy to service and maintain
Spare Parts Available
- Major Overhaul Kit / Rebuild Kit: Catalog 90062-0001, service kit (Neoprene) with Neoprene impeller, O-ring, and seal
- Impeller: Catalog 17935-0001, Neoprene impeller
- Shaft Seal: Catalog 6407-0010, service kit (Neoprene) with Neoprene impeller, O-ring, and seal
-
