The Jabsco 6400-0051 flexible impeller engine cooling pump end combines positive-displacement self-priming with centrifugal-style transfer capability for efficient pumping at low or high speeds and in either direction. Built with a bronze body, Neoprene impeller, and carbon/ceramic mechanical seal, it features 1-1/4 inch NPT internal ports and delivers a nominal 235 litres/min (62 gallons/min) at 1750 rpm. Designed to self-prime with airtight suction lines, it can achieve up to 22 ft vertical dry suction lift when fully wetted, while specified temperature and pressure limits help protect the impeller and pump components in demanding marine service.
- Description
- Ask a Question
-

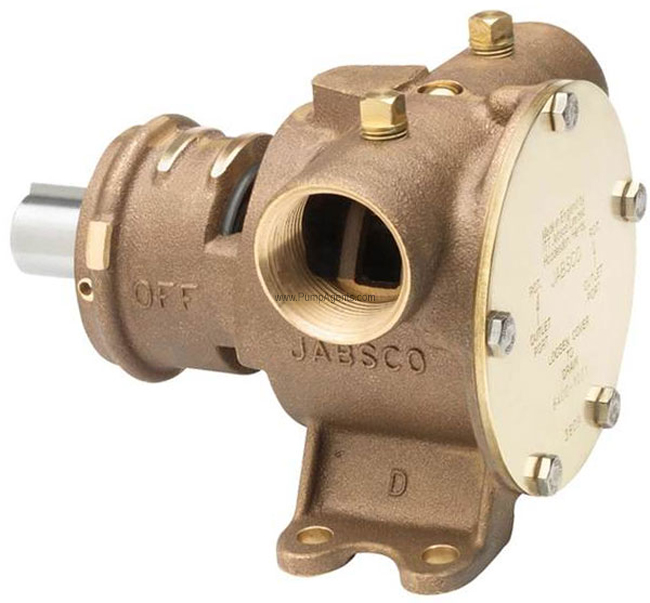

Jabsco 6400-0051 Flexible Impeller Cooling Pump End
The Jabsco 6400-0051 is a bronze, flexible impeller pump end intended for engine cooling and general-purpose liquid transfer where self-priming performance is required. It is a bare shafted pedestal pump end only and is built to operate efficiently at low or high speeds, in either rotational direction, and even when mounted at various angles.
Application
- Engine cooling
- Washdown
- Circulation
- General-purpose onboard or dockside pumping
- Bilge pumping
- Water circulation
- Circulating and transferring liquids
- Velocity mixing
- Transferring soap
- Transferring liquors
- Transferring pastes
- Transferring glues
- Transferring glycerine
- Transferring lotions
- Transferring brine
- Pumping water for stock and poultry houses
- Booster pumping
- Pumping out flooded basements
- Pumping out cesspools
- Pumping out sumps
Technical Specifications
Catalog Number 6400-0051 Pump Type Flexible impeller, self-priming Construction Bronze body Impeller Material Neoprene Shaft Seal Carbon/Ceramic mechanical seal Port Size 1-1/4 inch NPT internal ports Nominal Flow Rate 235 litres/min (62 gallons/min) at 1750 rpm Self-Priming Suction Lift Up to 10 ft vertical lift (minimum 800 rpm stated for 10 ft) Maximum Suction Lift (Fully Wetted) Up to 22 ft Impeller Temperature Limits 45°F to 180°F (7°C to 82°C) Pressure Limit (Continuous Duty) Do not exceed 30 psi Pressure Range (Intermittent Service Only) 35 to 50 psi with 807-1001 high pressure impeller plus an extra gasket Bearing Double row ball bearing
Product Details
- Configuration: Bare shafted pedestal pump end only
- Priming and Transfer Performance: Combines the priming feature of positive displacement pumps with the transfer ability of centrifugal pumps
- Flow Direction: Pumps in either direction with equal efficiency; rotation determines intake and discharge port locations
- Mounting: Can be mounted in any position and operates at any angle
- Lubrication Note: Relies on the liquid pumped for lubrication; do not run dry for more than 30 seconds
- Suction Line Requirement: Suction lines must be airtight for self-priming performance
- Material Note: Constructed from marine quality bronze and stainless steel
- Fluid Note: Neoprene impeller is suitable for water and general-purpose pumping; if oil is present, a nitrile impeller is recommended
- Care Guidance: If corrosive fluids are handled, flushing with water after each use or work day is stated to help prolong pump life
Features
- Self-priming capability
- Easy to service and maintain
- Will tolerate abrasive wear
- Handles hard and soft solids without clogging
- Can pump in either direction
- Will not airlock
Spare Parts Available
- Major Overhaul Kit / Rebuild Kit: Catalog # 90062-0001, Service Kit, Neoprene, with Neoprene impeller, O-ring, and seal
- Impeller: Catalog # 17935-0001, Impeller, Neoprene
- Shaft Seal: Catalog # 6407-0010, Service Kit, Neoprene, with Neoprene impeller, O-ring, and seal
-
