The Jabsco 653-0001-P impeller service kit supplies a neoprene pin-drive impeller with a gasket set for smooth, long-lasting pump performance. Built with a 12 mm shaft diameter, bolt-type shaft fit, and 6-blade design, it matches 51 mm diameter and 22 mm depth requirements for efficient fluid transfer in marine and industrial applications. This kit is also supplied with impeller lubricant and is listed as a replacement for Johnson 09-810B and Vetus IMP00801, with barcode 671880574921 and order number 00320259 for easy identification.
- Description
- Ask a Question
-
Jabsco 653-0001-P Pin Drive Neoprene Impeller Kit
The Jabsco 653-0001-P is a flexible impeller service kit designed to restore reliable pump operation with smooth, efficient flow. Supplied as a neoprene impeller and gasket kit (with additional gasket set and lubricant noted), it supports long-lasting performance in demanding marine and industrial pump applications.
Application
- Pin-drive pump impeller replacement and servicing
- Marine applications
- Industrial applications
Compatibility
- Replaces Johnson 09-810B
- Also known as Vetus IMP00801
- Alternative to Northern Lights 25-18325
- Alternative to Volvo 804696
- Alternative to Volvo 897055
- Alternative to Volvo 875808-8
- Alternative to Westerbeke & Universal 34440
- Alternative to Yanmar 128990-42200
- Same impeller as Jabsco 653-0001B
- Same impeller as Jabsco 653-0001
Technical Specifications
Brand Jabsco Supplier Code 653-0001-P Order Number 00320259 Barcode 671880574921 Impeller Diameter 51 mm Impeller Depth 22 mm Shaft Diameter 12 mm Type of Shaft Bolt Drive / Hub Slotted Shaft Pin Drive Number of Blades 6 Material Neoprene Insert Material Brass Shipping Weight 0.10 kg
Product Details

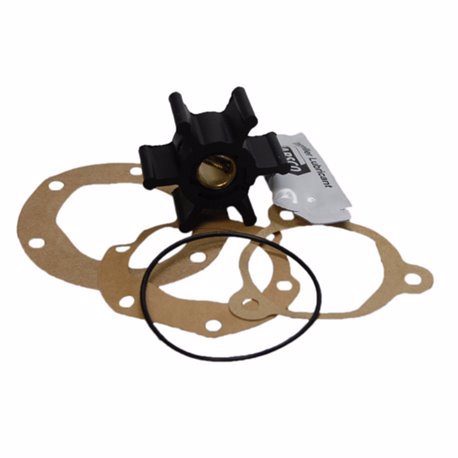

- Kit type: Impeller service kit
- Impeller style: Neoprene flexible impeller (profile G) with slotted shaft pin drive
- Included items: Neoprene impeller, gasket set, impeller lubricant
- Gaskets noted in kit: 29476-0000, 2995
Features
- Six-blade design supports efficient pumping
- Neoprene construction is stated to provide smooth, long-lasting performance
- Service-kit format supports planned maintenance with included gaskets and lubricant
-
