ID
1331522
$ 93.65
1-2 weeks delivery time
-
+
The Jabsco 6303-0007-P impeller service kit is a green urethane/polyurethane replacement kit for Jabsco wakeboard and ski boat ballast pumps, built around a 6-blade impeller with a single flat D-drive shaft interface for strong water transfer. Supplied with an O-ring and a glycerin lubricating packet, it supports reliable, leak-reduced pump servicing and is listed as a replacement for multiple Jabsco impeller references.
- Description
- Ask a Question
-
Jabsco 6303-0007-P Ballast Pump Impeller Service Kit
Keep ballast pump performance consistent with this Jabsco 6303-0007-P impeller kit. Built for water transfer in wakeboard and ski boat ballast systems, it combines a flexible impeller with the sealing and lubrication items needed for routine service.
Application
- Designed for Jabsco 18220 series wakeboard and ski boat ballast pumps
- Used, among others, in Jabsco ballast pump series 18220
- Used, among others, in Jabsco ballast pump series 18670
Compatibility
- Replaces Jabsco 06303-0007
- Replaces Jabsco 06303-0007-P
- Replaces Jabsco 6303-0107
- Alternative to Jabsco 6303-0007
- Alternative to Jabsco 6303-0007B
- Alternative to Jabsco 6303-0107
- Alternative to Jabsco 6303-0107-P
- Alternative to Jabsco 6303-0107B
- Alternative to Jabsco 6303-0107-J
Technical Specifications
Brand Jabsco Supplier Code 6303-0007-P Order Number 00320257 Barcode 671880588218 Impeller Diameter 51 mm (2 in) / 50.8 mm (2 in) Impeller Width (Depth) 22 mm (7/8 in) / 22.3 mm (7/8 in) Shaft Diameter 8 mm (5/16 in) / 7.9 mm (5/16 in) Shaft Type Single Flat D Drive Number of Blades 6 Material Urethane / Polyurethane Insert Material Plastic Color Green Shipping Weight 0.15 kg
Product Details

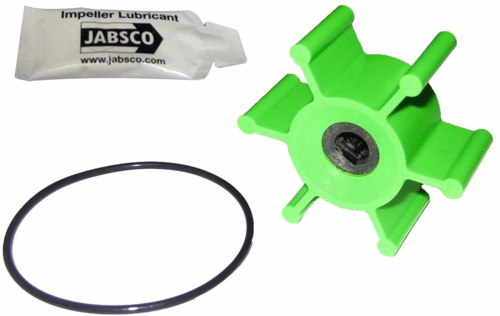

- Kit contents: Impeller, O-ring, glycerin lubricating packet
- Design: Reversible impeller with single flat drive
- Product portfolio: Impeller
- Notes: Listed as part number 4 in the exploded view
Features
- Six-blade flexible impeller supports efficient water circulation for ballast systems
- Included O-ring helps provide a secure, leak-reduced seal during service
- Lubricating packet assists with installation and initial operation
- Urethane/polyurethane construction built for dependable water transfer
-
