The Jabsco 58020-3024 deluxe electric marine toilet delivers 24V operation with an angled back for mounting against angled bulkheads, plus a quiet soft-close seat and lid for a more home-like onboard feel. It connects to an existing pressurized fresh water system for flushing and uses a one-touch control panel, while a powerful macerator discharge pump helps break up waste for effective evacuation. Built around a hygienic white vitreous china bowl with concealed plumbing and wiring, it supports 19 mm inlet and 38 mm discharge connections and is rated at 1 litre per complete rinse (also listed as approximately 1.0–2.5 L per flushing), with installation up to 1 meter below the waterline and supplied with a solenoid valve and siphon breaker assembly.
- Description
- Ask a Question
-

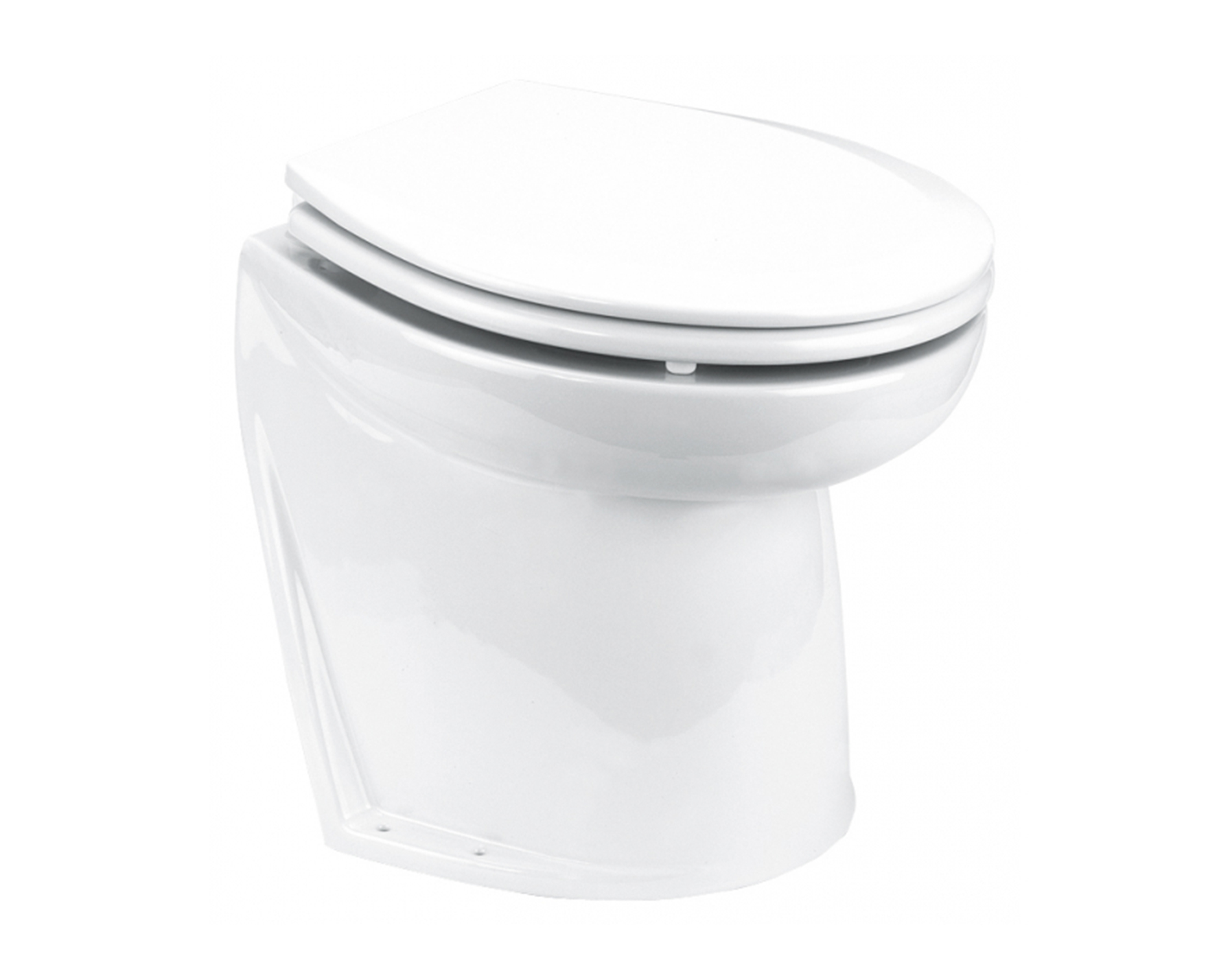

Jabsco 58020-3024 Deluxe 24V Electric Marine Toilet With Angled Back
The Jabsco 58020-3024 is a deluxe electric marine toilet designed for fresh water flushing by connecting to the vessel’s existing pressurized water system. Its 17 inch slanted back helps fit installations against angled bulkheads, while the soft-close seat and lid and the sleek bowl design deliver a clean, household-style appearance with plumbing and wiring neatly concealed.
Application
- Marine electric toilet for fresh water flush using a pressurized water supply
- Suitable for installation up to 1 meter (3 feet) below the waterline
- Designed for mounting against an angled bulkhead due to the slanted back
Compatibility
- Compatible with pressurized water systems (minimum pump flow listed as 11 L/min)
- Also supplied with a solenoid valve and siphon breaker assembly stated as compatible with pressurized water pumps with a flow rate of 13.5 L/min (3.5 GPM) or higher
- Replaces Jabsco 58020-0024
- Replaces Jabsco 58020-1024
- Replaces Jabsco 58020-2024
Technical Specifications
Supplier Code 58020-3024 Order Number 00320719 Voltage 24 Volts Dimensions (HxWxD) 445 x 375 x 475 mm Dimensions (Height x Width x Length) 447 mm x 375 mm x 475 mm Connections 19/38 mm Hose Connections (Inlet / Discharge) 19 mm inlet hose, 38 mm discharge hose Inlet Solenoid Valve Connection Options 13 mm (1/2 inch) hose connection or 15 mm Speedfit connection Outlet (Waste Water) 38 mm (1-1/2 inch) Water Consumption 1 litre per complete rinse Water Consumption (Also Listed) Approximately 1.0–2.5 L per flushing Current Consumption 10 A Fuse (Listed) 15 A Fuse (Also Listed) 25 A Energy Use (Listed) Less than 1 amp/hr per day Product Weight 26 kg Packaged Weight (Listed) Approximately 27.00 kg (also listed as 29.00 kg packed) Shipping Weight (Listed) 70.00 kg Color White Material Porcelain
Product Details
- Bowl: Hygienic pure white vitreous china bowl (also described as pure white glass ceramic)
- Flush Water Source: Pressurized fresh water system (drinking water pump listed)
- Discharge: Powerful macerator discharge pump to break up waste and evacuate the toilet
- Controls: One-touch control panel; touchpad control unit with four rinsing options; option to leave the bowl dry
- Installation Design: Angled/slanted back for angled bulkheads; bowl design conceals plumbing and wiring
Features
- Luxury soft-close seat and lid for quiet, gentle closing
- Low-noise operation (listed)
- Includes solenoid valve and siphon breaker assembly
- Includes control panel with wall bracket and black box (listed)
-
