ID
1331483
$ 1,523.28
1-2 weeks delivery time
-
+
The Jabsco 58020-3012 deluxe electric marine toilet delivers a household-style flush on 12V DC power with an angled 17-inch back for installations against slanted bulkheads. It combines a soft-close seat and lid with a hygienic vitreous china bowl and a powerful macerator discharge pump to break up waste and evacuate efficiently. Built for fresh water flushing, it can be mounted up to 1 meter (3 feet) below the waterline and includes solenoid valve and siphon breaker assemblies for pressurized water systems, with low water usage stated as 1 litre per complete rinse.
- Description
- Ask a Question
-

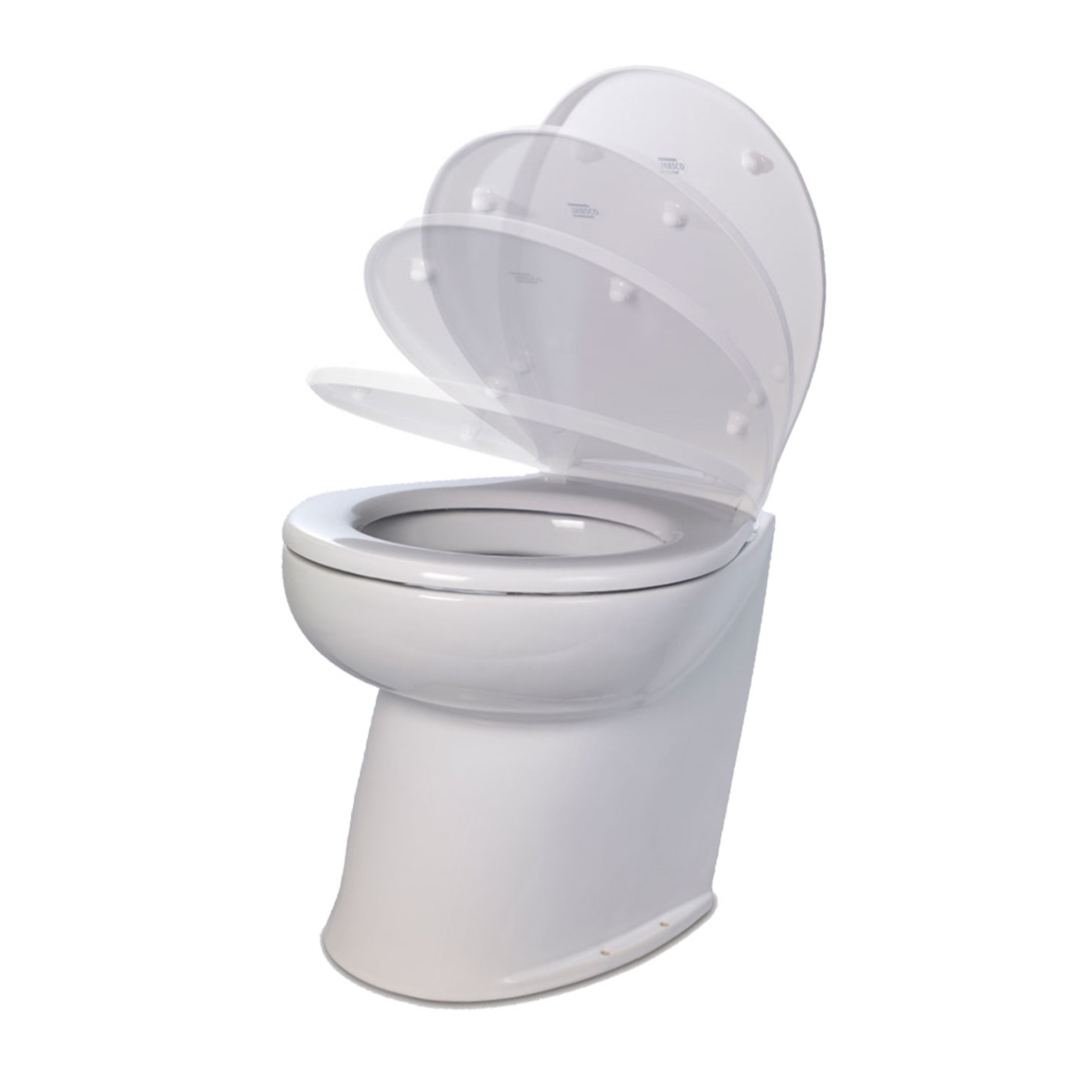

Jabsco 58020-3012 Deluxe Electric Marine Toilet Unit
The Jabsco 58020-3012 is a deluxe 12V DC electric toilet designed for fresh water flushing, offering a compact, household-style installation with concealed plumbing and wiring. Its angled back is intended to help fit installations on slanted bulkheads, while the integrated macerator discharge pump supports efficient waste evacuation.
Application
- Fresh water flush electric toilet for marine installations
- Can be mounted up to 1 meter (3 feet) below the waterline
- For connection to pressurized fresh water systems (remote-mounted automatic pressurized water pump stated at minimum 11 LPM)
- Solenoid valve and siphon breaker included (also stated for connection to water pumps with 13.5 LPM (3.5 GPM) or higher flow)
Compatibility
- Replaces Jabsco 58020-0012
- Replaces Jabsco 58020-1012
- Replaces Jabsco 58020-2012
Technical Specifications
Order Number 00320718 Supplier Code 58020-3012 Voltage 12 Volts (12V DC) Dimensions (H x W x D) 445 x 375 x 475 mm Additional Dimensions (Stated) Height 447 mm; Width 375 mm; Length 475 mm Dimensions (Approx.) Width approx. 37.5 cm; Depth approx. 45.0 cm; Height approx. 44.5 cm to top of closed cover Water Consumption (Stated) 1 litre per complete rinse; 1 litre per flush; approx. 1.0 2.5 L per flushing Inlet Hose Connection (Stated) 19 mm inlet hose Discharge Hose Connection 38 mm discharge hose Solenoid Inlet Connection (Stated) 13 mm (1/2 inch) hose connection or 15 mm JG Speedfit connection Outlet Connection (Waste Water) 38 mm (1-1/2 inch) Current Consumption 20 A Required Fuse 25 A Weight (Stated) 26 kg; approximately 27.00 kg (29.00 kg when packed) Shipping Weight (Stated) 70.00 kg Color White porcelain bowl Product Portfolio Electric Toilets
Product Details
- Design: Angled back (slanted 17-inch back) to fit angled bulkheads
- Bowl: Vitreous china bowl (also described as pure white glass ceramic) in a compact size
- Discharge: Powerful macerator discharge pump (also described as a high-performance waste pump with mechanical seal)
- Control: One-touch control panel; touchpad control unit with four rinsing options
- User option: Owner-selectable choice to leave the bowl wet or dry after use
- Included assemblies: Solenoid valve and siphon breaker
- Included in delivery (stated): Solenoid valve, control panel with wall bracket, and black box
Features
- Soft-close seat and lid for added comfort
- Low-noise operation (stated as quiet like a household toilet)
- Elegant styling that conceals plumbing and wiring
-
