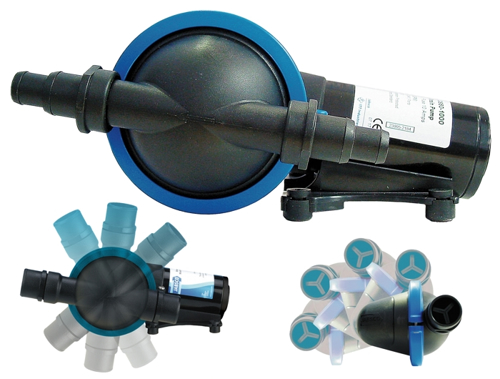

Jabsco 50880-1000 - Self-Priming Diaphragm Pump 12V

Jabsco 50880-1000 - Self-Priming Diaphragm Pump 12V

The Jabsco 50880-1000 Self-Priming Diaphragm Pump is a high-performance pump designed for 12V DC operation. Offering a maximum flow rate of 16 liters per minute (3.5 gallons per minute), it is perfect for fluid transfer applications in marine, RV, and industrial environments. With the ability to self-prime up to 3 meters (9.5 feet) of vertical lift, this pump ensures reliable operation even in systems where flooding is not possible. Its robust, quiet design allows for extended dry running, and it operates efficiently without the need for a strainer. The pump is rated for up to 30 minutes of continuous running, providing flexibility for various applications.

Key Features:

• 12V DC operation, ideal for automotive, marine, RV, and industrial applications.
• Maximum flow rate of 16 liters per minute (3.5 gallons per minute) for efficient fluid transfer.
• Self-priming capability up to 3 meters (9.5 feet) vertical lift, ensuring reliable operation in various fluid transfer tasks.
• Robust and quiet single diaphragm design allows for extended dry running without damage.
• Requires no strainer, reducing maintenance time and simplifying installation.
• Multi-positional ports for flexible mounting and installation options.
• Rated for up to 30 minutes of continuous running, perfect for longer fluid transfer tasks.
• Compact, lightweight design weighing only 2.98 kg (6.56 lbs), easy to handle and install.

Specifications:

• Model: Jabsco 50880-1000
• Material: Durable plastic housing with a single diaphragm design for extended life and performance.
• Voltage: 12V DC
• Connections: 19mm (¾”) bore hose connections for compatibility with standard piping systems.
• Maximum Output: 16 liters per minute (3.5 gallons per minute), ideal for quick fluid transfer tasks.
• Maximum Total Head: 6 meters (19.7 feet), offering versatility in a variety of applications.
• Fuse Size: 10A
• Maximum Current: 8A, ensuring efficient operation without excessive power draw.
• Dimensions:
  • Length: 294 mm (11.6 inches)
  • Width: 159 mm (6.3 inches)
  • Height: 132 mm (5.2 inches)
• Weight: 2.98 kg (6.56 lbs)
• Packaged Dimensions:
  • Length: 31.00 cm (12.2 inches)
  • Height: 16.00 cm (6.3 inches)
  • Width: 18.00 cm (7.1 inches)
• Fluid Temperature Range: +4°C (39°F) to +60°C (140°F), suitable for most non-viscous liquids.
• Continuous Duty Rating: 30 minutes of continuous running, perfect for extended tasks.
• Noise Level: Operates at less than 60 dB(A) for quieter performance compared to many pumps in its class.
• Port Configuration: Multi-positional for easy installation and flexible system integration.

Compatibility and Applications:

• Ideal for use in marine, automotive, RV, and industrial fluid transfer systems.
• Perfect for pumping water, diesel, oils, and other non-viscous liquids.
• Suitable for boat bilge pumps, agricultural fluid transfer, and general water or liquid handling tasks.
• Great for fluid transfer tasks requiring self-priming, even when dealing with vertical suction lifts of up to 3 meters (9.5 feet).
• Compatible with flexible ¾” bore hoses for easy installation and connection.

Benefits:

• Self-priming capability ensures reliable operation, even with vertical lifts up to 3 meters (9.5 feet), perfect for systems where flooding may not be possible.
• Durable single diaphragm design allows for extended dry running without damage, making it ideal for various intermittent applications.
• Quiet operation helps maintain a calm environment, especially important for boats, RVs, or small spaces.
• Requires no strainer, reducing the need for maintenance and simplifying the pump design.
• Flexible mounting with multi-positional ports ensures easy installation and integration into existing systems.
• Lightweight and compact design makes it easy to transport, install, and replace when necessary.
• Rated for 30 minutes continuous use, offering reliability during extended transfer operations.
