The Jabsco 52040-2001 cooling water pump is a foot-mounted pedestal impeller pump designed for marine engine cooling and as a replacement for older Jabsco models. Its pulley drive and 3/4 in BSP internal threaded ports support straightforward integration, while the 40 liters per minute nominal output at 1500 rpm delivers dependable cooling-water circulation. A marine-grade bronze body, self-priming capability up to 2 meters, and serviceable components (including a replaceable impeller) help keep maintenance practical in harsh operating environments.
- Description
- Ask a Question
-

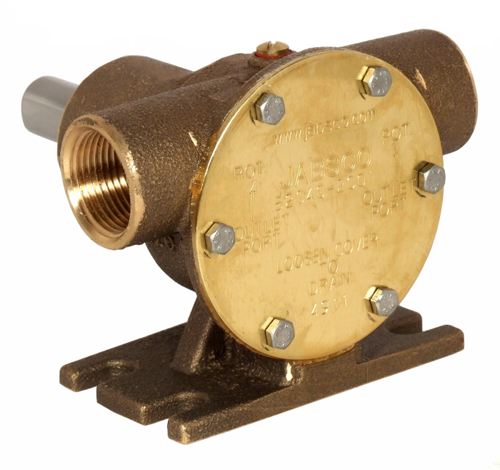

Jabsco 52040-2001 Foot-Mounted Cooling Water Pump Unit
The Jabsco 52040-2001 is a foot-mounted pedestal cooling water pump widely used on marine engines and specified as a replacement for previous Jabsco pump models. Built around an impeller-pump design with a pulley drive, it supports steady cooling-water circulation and is designed for dependable operation in demanding environments.
Application
- Type: Cooling water pump
- Typical use: Marine engine cooling applications
- Also described for: Marine, industrial, and agricultural fluid transfer systems
- Example tasks noted: Bilge pumping, water circulation, and light oil transfer
Compatibility
- Buroli Escort XLD engines
- Caterpillar Marine Power 4.90 engines
- FNM 1.3 ATI engines
- Ford FSD 425 engines
- Lancing Marine Ford 4-Cylinder engines
- Perkins 6.354 engines
- Mermaid Marine Meermin engines
- Mermaid Marine Merlin FSD engines
- Mermaid Marine Minuet engines
- Tempest Diesel Captain 1.5 engines
- Tempest Diesel Captain 1.8 engines
- Thornycroft 90 engines
- Thornycroft 90E engines
- Thornycroft 108 engines
- Thornycroft 2 engines
- Thornycroft RF LD-220 engines
Technical Specifications
Brand Jabsco Model 52040-2001 Supplier Code 52040-2001 Order Number 00320293 Barcode 671880548601 Connection / Port Size 3/4 in BSP internal threaded ports (19 mm) Internal Junction Size 3/4 in Nominal Flow Rate 40 liters/minute @ 1500 rpm Maximum Recommended Flow Rate 45 liters/minute Operating Speed Recommended at 1500 rpm Maximum Operating Pressure 1.5 bar Self-Priming Up to 2 meters Maximum Fluid Temperature +80 C Minimum Fluid Temperature +5 C Noise Level Below 70 dB(A) at 1500 rpm Material Marine-grade bronze body; stainless steel shaft; bronze (listed) Mounting Type Foot mounting Drive Pulley drive; single flat drive (listed) Impeller Hub Spline drive Shaft Diameter 17 mm (also listed as 16 mm) Dimensions (L x W x H) 240 mm x 110 mm x 130 mm Weight Actual: 1.70 kg; Packed: Approx. 2.20 kg; Shipping weight: 2.10 kg
Product Details
- Pump style: 3/4 in BSP foot-mounted pedestal pump (size 40)
- Replacement references (listed): Former gland pump 4900-200; foot-mounted 21820-200; alternative to 21820-2001
- Impeller part number (listed): 1210-0001B
- Recommended spare impeller (listed): JAB-1210-0001-P
- Serviceable parts (listed): Replaceable impeller, seals, and bearings
- Fluid compatibility (listed): Water, seawater, light oils, oil, and non-corrosive liquids
Features
- Foot-mounted configuration supports stable installation
- 3/4 in BSP internal threaded ports help provide secure connections
- Nominal 40 liters per minute output at 1500 rpm for consistent cooling-water delivery
- Marine-grade bronze construction is specified for corrosion resistance in harsh environments
- Self-priming capability up to 2 meters for practical onboard operation
-
