The Jabsco 36680-2000 Par bilge pump unit provides high-performance, self-priming water removal for marine bilge systems using a 12V DC motor. Its corrosion-resistant construction and UV-resistant thermoplastic housing help it withstand harsh seawater conditions, while the diaphragm design supports extended dry running. With 3/4" hose ports (including 3/4" NPT inlet and 3/4" hose discharge options noted) and quiet, vibration-reduced operation, it supports flexible installation and dependable bilge drainage on boats, yachts, and other vessels.
- Description
- Ask a Question
-

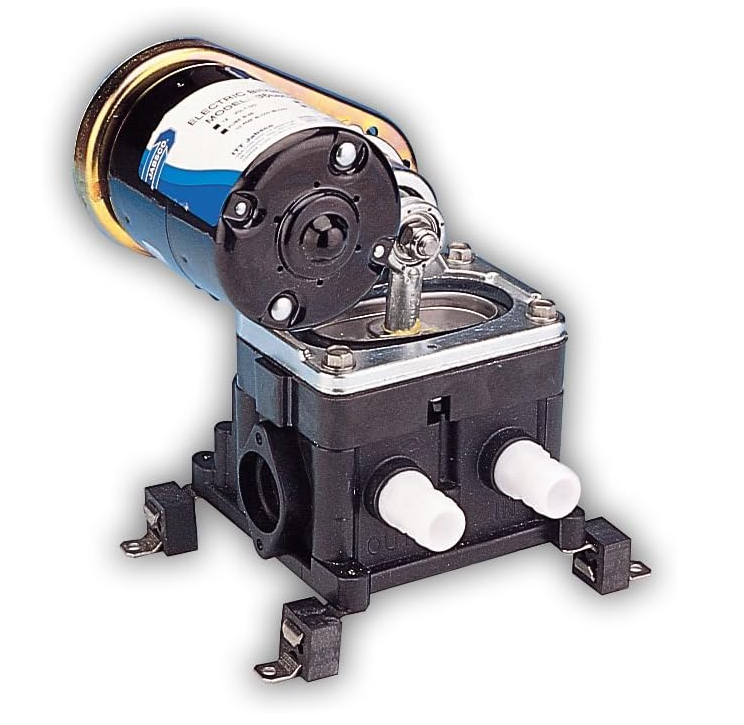

Jabsco 36680-2000 12V Par Bilge Pump Unit
The Jabsco 36680-2000 is an electric, self-priming bilge pump designed for reliable water removal in marine environments. Built for corrosion resistance and engineered for quiet operation, this diaphragm-style pump helps keep bilge areas dry and supports safe, dependable drainage performance on a wide range of vessels.
Application
- Marine bilge systems
- Water removal from boats
- Water removal from yachts
- Water removal from other marine vessels
- Bilge and deck wash use (as described)
Compatibility
- For 3/4" hose connections
- For 19 mm (3/4") inside-diameter hose (strainer specified)
Technical Specifications
Part Number 36680-2000 Voltage 12V DC Motor Type DC Motor Pump Type Electric reciprocating diaphragm pump (as described) Self-Priming Yes (listed); self-priming up to 2.1 m (7 ft) also stated Flow Rate / Output 10 GPM stated; 21 L/min (5.5 GPM) stated Connections / Port Size 3/4" hose ports; connections for 3/4" hose; 19 mm (3/4") inside-diameter hose noted Inlet Size 3/4" NPT Discharge Size 3/4" hose connection Power Consumption / Current 3.5 amps stated; nominal 7A stated; fuse 10A stated Max Suction Lift 10 ft (3 m) stated; 2.1 m (7 ft) stated (self-priming) Max Head 3 m (10 ft) Maximum Operating Pressure 2.5 bar (36 psi) Max Temperature 50 C (122 F) Mounting Suitable for vertical or horizontal mounting; mounting upright in a dry location above the highest bilge water level is also stated Dimensions L 27.00 cm x H 27.00 cm x W 27.00 cm stated; Height 21.6 cm x Width 16.5 cm x Length 19.4 cm stated Packaged Dimensions L 27.00 cm x H 27.00 cm x W 27.00 cm Weight 3.96 kg actual stated; approx. 4.46 kg packed stated; 6.00 kg shipping weight stated Housing Material UV-resistant thermoplastic Construction / Materials High-quality, corrosion-resistant construction; corrosion-resistant materials throughout for seawater service stated Electrical Protection Thermal overload protection Certifications / Approvals CE; RoHS; USCG approved for marine applications; meets USCG Regulation 183.410; ISO 8846 MARINE for ignition protection; ISO 8849 MARINE Warranty 1-year limited warranty
Product Details
- Design: Diaphragm design supports extended dry running
- Drive: Belt drive stated
- Bearings: Permanently lubricated ball bearings on shaft and connecting rod (as stated)
- Noise and Vibration Control: Quiet operation with built-in hydraulic pulsation damper and large vibration-absorbing pads (as stated)
- Strainer Included: Strainer 20 mesh for 19 mm (3/4") inside-diameter hose; also described as supplied with an inline strainer and complete with Pumpgard strainer
- Serviceability: Fully serviceable and designed for easy maintenance with available replacement parts; spare parts available
Features
- 12V DC motor for consistent bilge water removal
- Self-priming operation for reliable performance in marine installations
- Corrosion-resistant materials suited to seawater operation
- 3/4" hose connectivity for straightforward integration
- Low-noise design with pulsation damping and vibration reduction
- Diaphragm pump design that tolerates dry running (as stated)
-
