The Jabsco 36600-0000 Par bilge pump is a high-performance 12V DC diaphragm pump built for efficient bilge water removal in marine environments, delivering 30 liters per minute (7.9 gpm) flow and self-priming up to 3 meters (10 ft). Corrosion-resistant construction supports seawater service, while the supplied inline strainer/filter helps block debris for smoother, longer-lasting operation. With 3/4 inch hose connections and features like quiet running, hydraulic pulsation dampening, overload protection, and continuous-duty capability, it is well suited to boats and yachts needing dependable drainage.
- Description
- Ask a Question
-

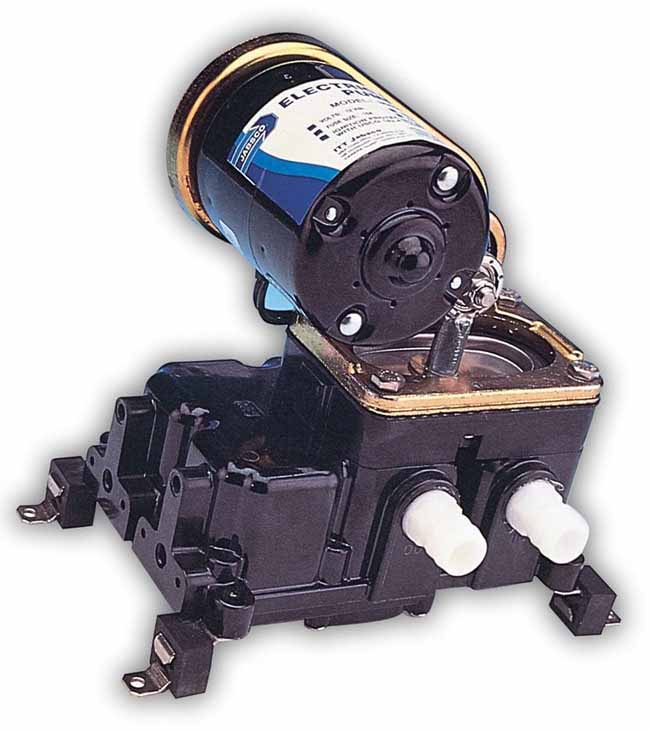

Jabsco 36600-0000 12V Diaphragm Bilge Pump Unit
The Jabsco 36600-0000 is an electric bilge pump and motor unit designed to remove bilge water quickly and reliably on marine vessels. Its diaphragm design supports self-priming installation options and allows extended dry running, while corrosion-resistant materials help it stand up to harsh marine conditions. An inline strainer/filter is supplied to reduce the risk of debris damage and clogging.
Application
- Bilge water removal for boats, yachts, and other marine vessels
- Suitable for freshwater and lightly contaminated water
- Seawater-capable operation (corrosion-resistant materials for seawater service)
- Remote mounting possible due to self-priming capability (can be mounted above wet bilges)
Compatibility
- 3/4 inch hose connections
- 19 mm (3/4 inch) internal diameter hose
- 3/4 inch hose barb ports
Technical Specifications
Part Number 36600-0000 Brand Jabsco Product Portfolio Electric bilge pumps Voltage 12V DC Motor Type 12V DC motor Flow Rate 30 liters per minute (7.9 gpm); also listed as 8 gpm max Self-Priming Up to 3 m (10 ft) Max Head 10 ft (3 m) Max Pressure 2.8 bar (40 psi) Nominal Amperage 11 A Recommended Fuse 15 A Weight 4.20 kg (approx. 4.70 kg packed) Shipping Weight 6.00 kg Dimensions (Set 1) 24.00 cm (L) x 31.00 cm (H) x 34.00 cm (W) Dimensions (Set 2) Height 21.0 cm; Width 14.6 cm (plus pads); Length 17.8 cm
Product Details
- Pump Type: Electric diaphragm bilge pump (pump and motor unit)
- Drive: Belt drive
- Connections: 3/4 inch hose connection
- Strainer: Supplied with inline strainer/filter (listed as 20 mesh strainer for 19 mm (3/4 inch) internal diameter hose)
- Compliance: Complies with USCG 183.410 and ISO 8846 Marine; ISO 8849 Marine
- Spare Parts Reference: Catalog 35630-1100 base assembly with valve set, ports, pulsation dampener, large pulsation dampener, two bottom plates, vibration pads
Features
- Self-priming design for flexible installation (including mounting above wet bilges)
- Diaphragm design allows extended dry running
- Corrosion-resistant materials throughout for seawater service
- Quiet operation with built-in hydraulic pulsation dampener
- Permanently lubricated ball bearings on shaft and connecting rod
- Large vibration-absorbing pads
- Overload protection for the motor
- Designed for continuous duty in demanding conditions
-
