The Jabsco 36900-1000 Marine Par belt drive high-pressure water pressure pump delivers consistent onboard water flow with a 12V DC motor rated at 4.2 GPM (15.9 liters/min) and 40 PSI (2.8 bar), supporting systems with up to 5 outlets. Its self-priming diaphragm design can run dry without damage, while the belt drive helps provide smooth, quiet operation. Corrosion-resistant construction and built-in control via a pressure switch (on at 20 PSI, off at 40 PSI) make it well-suited for marine freshwater supply, showers, galleys, and washdown use on boats, yachts, and recreational vehicles.
- Description
- Ask a Question
-

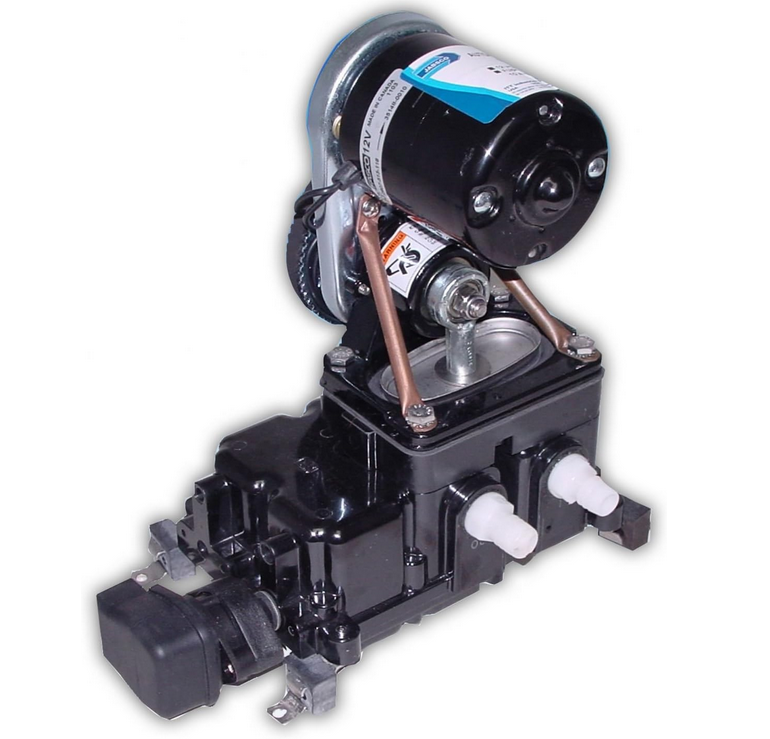

Jabsco 36900-1000 Belt Drive High Pressure Water System Pump
The Jabsco 36900-1000 is a high-performance water pressure pump and motor unit built for dependable onboard water delivery. Designed for multi-outlet water systems, it provides steady pressure for everyday marine needs such as showers, galley use, freshwater distribution, and washdowns. The belt drive design supports smooth, low-noise operation, while marine-grade corrosion resistance helps it stand up to harsh conditions.
Application
- Marine freshwater systems requiring high-pressure water delivery
- Washdown systems for boats and yachts
- Showers and galley water supply
- Multiple-outlet water systems on vessels (up to 5 outlets)
- Self-contained recreational vehicles
- Pleasure boats with multiple-outlet water systems
Compatibility
- Boats
- Yachts
- Recreational vehicles
Technical Specifications
Part Number 36900-1000 Voltage 12V DC Current Draw 15 Amps Flow Rate 4.2 GPM (15.9 liters/min) Pressure 40 PSI (2.8 bar) Pressure Switch Turns On at 20 PSI; Turns Off at 40 PSI Maximum Outlets Supported Up to 5 outlets Drive Type Belt drive Port Options 1/2 inch ID hose barb; 5/8 inch ID hose barb Self-Priming Yes (allows installation above or below the fresh water tank) Dry-Run Capability Diaphragm design allows dry running Compliance and Standards Meets USCG Regulation 183.410; ISO 8846 Marine for Ignition Protection; CE certified; meets ISO and UL standards
Product Details
- Pump Type: Diaphragm pump and motor unit
- System Operation: Automatic operation for multi-outlet systems (pump starts when a faucet opens and stops when it closes)
- Construction: Corrosion-resistant materials for harsh marine environments
- Mounting Guidance: Vibration pads are most effective when the pump is mounted upright on a solid surface
- Service: Spare parts available
Features
- High-pressure output: 4.2 GPM at 40 PSI
- Low-noise, smooth-running belt drive system
- Self-priming for easier installation and start-up
- Can run dry without damage (diaphragm design)
- Built-in discharge check valve
- Built-in hydraulic pulsation dampener
- Large vibration-absorbing pads
- Ports available with barb, threads, or flare
-
