The Jabsco 36960-2000 self-priming bilge pump unit delivers efficient water removal for shallow bilge boats with a 12 V DC motor and 3/4 inch slip-on hose ports. Its diaphragm pump design supports dry running and helps extract nearly all remaining water, with an open flow rate of 4 GPM and a vertical dry suction lift of up to 7 feet. Corrosion-resistant materials support seawater service, while the built-in hydraulic pulsation dampener and included Pumpgard strainer enhance smooth operation and inlet protection. It meets USCG regulation 183.410 and ISO 8846 MARINE ignition-protection requirements.
- Description
- Ask a Question
-

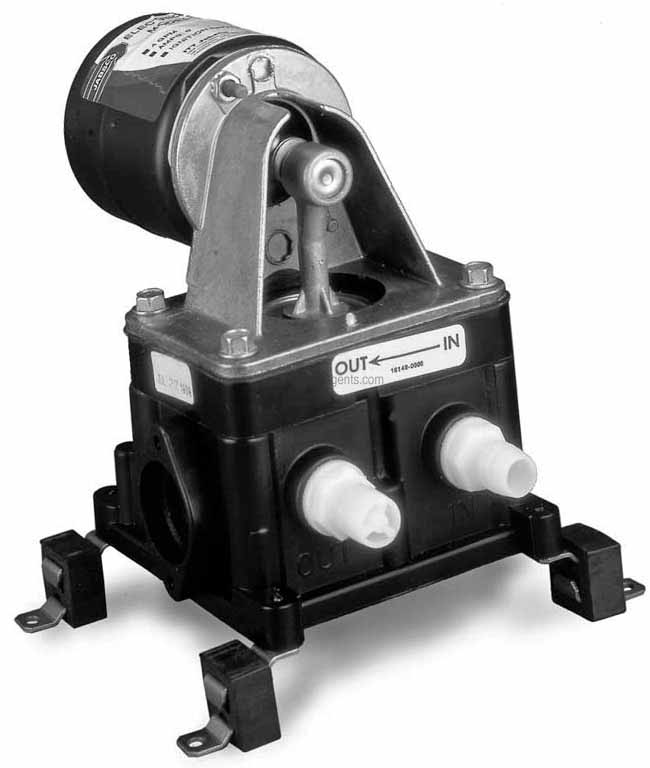

Jabsco 36960-2000 Self-Priming Diaphragm Bilge Pump Unit
The Jabsco 36960-2000 is a self-priming electric diaphragm pump built to remove bilge water effectively in shallow bilge boats, especially where other pump types can leave water behind. Its ability to self-prime supports mounting in an accessible, high, and dry location to simplify installation and improve serviceability, while the diaphragm design allows dry running during operation.
Application
- Shallow bilge boats
- Bilge water removal
- Shower drain pumping
- Sink drain pumping
Technical Specifications
Brand Jabsco Catalog Number 36960-2000 Pump Type Self-priming electric diaphragm bilge pump Motor 12 V DC Port Size 3/4 inch slip-on hose ports Open Flow Rate 4 GPM Vertical Dry Suction Lift Up to 7 feet Materials Corrosion-resistant materials for seawater service Ignition Protection Standards USCG Regulation 183.410; ISO 8846 MARINE
Product Details
- Self-priming capability supports mounting upright in a dry location on a solid surface.
- Diaphragm design allows the pump to run dry, reducing the need to monitor overboard outlets while operating.
- Built-in hydraulic pulsation dampener helps smooth pump operation.
- Pumpgard strainer included for suction-side protection.
Features
- Self-priming design
- Dry-running capable diaphragm pump
- Corrosion-resistant construction for seawater service
- Ignition-protection compliance: USCG 183.410 and ISO 8846 MARINE
- Includes Pumpgard strainer
Service Parts
- Major Overhaul Kit / Rebuild Kit: Catalog 43990-0063 (service kit with connecting rod assembly, valve set, diaphragm, and pulsation dampener)
-
