The Jabsco 35440-0010 flex mount ventilation blower delivers high-volume airflow on 24V DC for marine air intake or extraction, using 100 mm (4-inch) slip-on duct connections and a 360° adjustable outlet to simplify installation in confined spaces. Corrosion-resistant, reinforced plastic construction supports long service in harsh onboard environments, while ignition-protection and marine compliance features help make it suitable for engine rooms, fuel compartments, galleys, heads, and bilge ventilation.
- Description
- Ask a Question
-

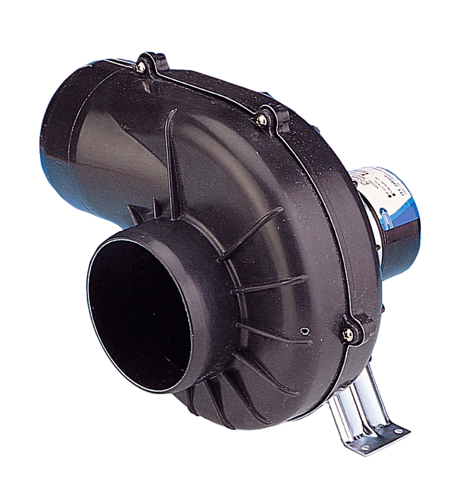

Jabsco 35440-0010 Marine Ventilation Blower Unit
The Jabsco 35440-0010 is a 24V DC flex mount blower designed to move air for onboard ventilation. Built for marine environments, it supports easy ductwork connection and flexible positioning, making it a practical choice for both air intake and extraction where reliable airflow and corrosion resistance are important.
Application
- Engine rooms
- Fuel compartments
- Galleys
- Heads
- Bilge areas (including evacuating fuel vapors prior to startup)
- Accommodation spaces
Technical Specifications
Part Number 35440-0010 Order Number 00320287 Supplier Code 35440-0010 Barcode 671880030267 Voltage 24V DC Airflow / Air Displacement (As Stated) 7.1 m³/min; also stated as 7.0 m³/min and 7 m³/min (248 CFM / 250 CFM) Duct / Hose Connection Diameter 100 mm (4-inch) Dimensions (As Listed) 230 mm (L) × 240 mm (W) × 250 mm (H); also listed as 220 mm (L) × 220 mm (W) × 230 mm (H) Packaged Dimensions 31.00 cm (L) × 26.00 cm (W) × 21.00 cm (H) Weight (As Listed) 2.82 kg; also listed as 2.51 kg (approx. 3.01 kg packed) Fuse Size 7.5 A Maximum Current 5.3 A Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Product Details
- Mounting style: Flex mount with mounting collar (supplied), suitable for bulkhead or surface mounting
- Outlet adjustment: Flex mounting with 360° adjustable outlet
- Design: Radial blower design
- Connections: Slip-on inlet and outlet ports for flexible ducting
- Construction: Reinforced plastic body with corrosion-resistant materials throughout
- Rotor: Dimensionally stable, quiet-running Delrin rotors
- Protection: Thermal overload protection
- Duty guidance: Primarily intended for intermittent duty cycles; maximum motor life approximately 1000 hours
- Regulatory / compliance (as stated): Complies with USCG 183.410, ISO 8846, and ISO 9097; CE marked; listed as NMMA type accepted; ignition protected for removing fumes from gasoline engine compartments prior to startup
- Also known as: Jabsco Snail Cam Blower
Features
- High-volume ventilation for marine compartments
- Corrosion-resistant build for harsh onboard conditions
- Flexible installation with 100 mm (4-inch) duct compatibility
- Quiet-running blower design with low-maintenance motor
- Large vibration-absorbing pads to help minimize noise
Spare Parts
- Catalog 35714-0000: Blower wheel
-
