The Jabsco 35440-0000 ventilation blower delivers 12V-powered airflow rated at 250 CFM (7.1 m³/min) through 100 mm duct connections, supporting effective marine compartment ventilation. Its flex-mount radial design with a 360° adjustable outlet helps optimize duct routing in tight installations, while reinforced plastic construction, corrosion-resistant materials, and quiet Delrin rotors enhance durability and onboard comfort. The blower also meets marine ignition protection and electric fan standards, including USCG 183.410, ISO 8846, and ISO 9097.
- Description
- Ask a Question
-

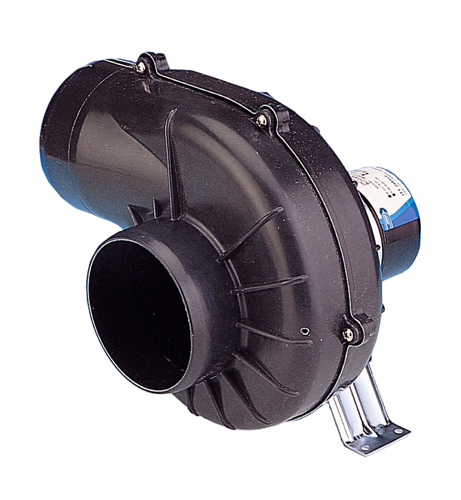

Jabsco 35440-0000 Flex-Mount Marine Ventilation Blower Unit
The Jabsco 35440-0000 is a 12V DC ventilation blower built for marine airflow management where flexible mounting and reliable fume extraction are essential. A flex-mount system and a 360° adjustable outlet support efficient duct routing in confined spaces, while corrosion-resistant materials and quiet-running rotors help maintain dependable operation onboard.
Application
- Evacuating fuel vapors from bilge areas (intermittent duty cycles)
- Removing fumes from engine compartments of gasoline-powered boats prior to startup
- General air circulation applications (note: maximum motor life is approximately 1000 hours)
- Air intake or extraction in galleys, bilges, accommodation areas, and head compartments
Technical Specifications
Supplier Code 35440-0000 Order Number 00320286 Barcode 671880030250 Voltage 12 Volts DC Airflow Rating 250 CFM (7.1 m³/min) Hose Connection Diameter 100 mm (4 inch) Dimensions (L × W × H) 230 mm × 240 mm × 250 mm Weight 2.82 kg
Product Details
- Design: Radial blower design
- Body Material: Reinforced plastic
- Outlet Adjustment: Flex-mounting enables 360° adjustable outlet positioning
- Duct Connections: Slip-on inlet and outlet ducting connections
- Rotor Material: Quiet, dimensionally stable Delrin rotors
- Construction Focus: Corrosion-resistant materials throughout
- Motor Coupling: Coupled to a 12 Volt DC motor
Features
- Flexible mounting system for adaptable installation and duct routing
- Low electrical current draw
- Quiet-running rotor design to reduce onboard noise
- Designed for easy connection to ductwork
- Complies with USCG 183.410 and ISO 8846 marine ignition protection standards
- Meets ISO 9097 marine requirements for electric fans
- Listed as N.M.M.A. type accepted and CE marked
Spare Parts
- Catalog # 35714-0000, Blower Wheel
-
