ID
1331394
$ 396.15
1-2 weeks delivery time
-
+
The Jabsco 35400-0010 marine ventilation blower delivers high volume air movement on 24V DC, providing 250 CFM (7.1 m³/min) through a 100 mm (4 inch) outlet flange for direct bulkhead or flat-surface mounting. Its reinforced plastic housing, quiet Delrin rotors, low current draw, and corrosion-resistant materials support reliable operation in demanding marine spaces. The blower meets NMMA type acceptance and ignition protection requirements to USCG 183.410 and ISO 8846, and complies with ISO 9097 for electric fans.
- Description
- Ask a Question
-

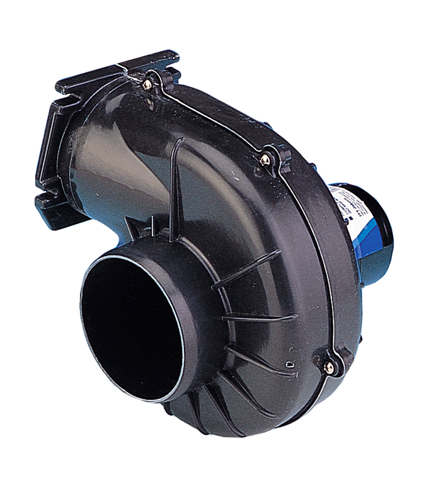

Jabsco 35400-0010 24V High Volume Flange Mount Blower
The Jabsco 35400-0010 is a compact, high-volume marine ventilation blower designed for air intake or extraction in onboard compartments. Built with a reinforced plastic body and corrosion-resistant materials, it supports efficient ventilation while maintaining quiet operation through dimensionally stable Delrin rotors.
Application
- Engine rooms
- Fuel compartments
- Galleys
- Heads
- Bilge areas (evacuating fuel vapors prior to startup)
- Accommodation spaces
Technical Specifications
Order Number 00320282 Supplier Code 35400-0010 Barcode 671880030182 Voltage 24 V DC Airflow Capacity 250 CFM (7.1 m³/min) Hose Connection Diameter 100 mm (4 inch) Dimensions (L × W × H) 220 mm × 220 mm × 230 mm Maximum Current 5.3 A Required Fuse 7.5 A Weight 2.56 kg Packaged Dimensions 31.00 × 21.00 × 26.00 cm Packed Weight 3.07 kg
Product Details
- Housing material: Reinforced plastic
- Rotor material: Delrin (quiet-running, dimensionally stable)
- Mounting style: 4 inch outlet flange mounts directly on a bulkhead or flat surface
- Connections: Slip-on inlet ducting connection
- Design: Radial blower design for high output in more complex installations with longer duct runs and/or multiple bends
- Duty guidance: Primarily intended for intermittent duty cycles such as evacuating fuel vapors; when used for longer duty cycles, maximum motor life is approximately 1000 hours
- Installation note: Mount away from extreme heat; do not install close to direct heat sources exceeding 180 °F
Features
- High-volume airflow for efficient ventilation
- Low current draw for energy efficiency
- Corrosion-resistant materials throughout the unit
- Quiet operation with Delrin rotors
- Certifications and compliance: NMMA Type Accepted; meets USCG Regulations 183.410 and ISO 8846 for ignition protection; complies with ISO 9097 for electric fans; CE marked
Spare Parts
- Catalog 35714-0000: Blower wheel
-
