The Jabsco 31395-4024-3A Par-Max 3 freshwater pressure pump delivers up to 11 L/min (2.9 US GPM) with a 40 PSI (2.8 bar) cut-out pressure for dependable onboard water supply. It is specified as a 24V DC pump with ignition protection (ISO 8846) and listed certifications including CE and RCM compliance, plus an included inline 40-mesh strainer and quick-connect fittings for faster installation. Self-priming capability (up to 3 m dry prime is stated) and a quiet-running, 3-chamber diaphragm design with bypass help provide smooth flow to multiple outlets, with a 5A fuse requirement (not included) and approximately 3A current draw at 40 PSI noted in the provided data.
- Description
- Ask a Question
-

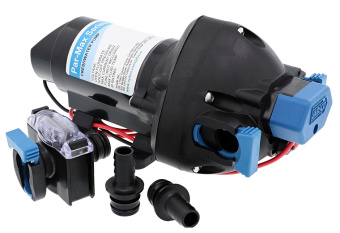

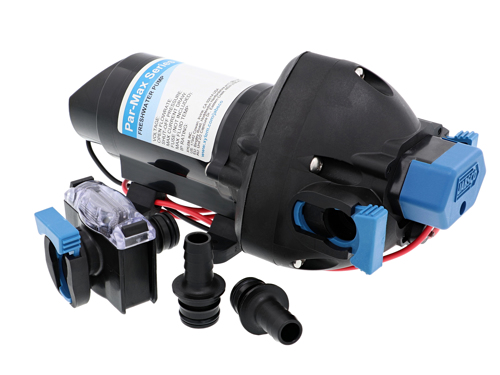

Jabsco 31395-4024-3A Par-Max 3 24V Freshwater Pressure Pump Unit
The Jabsco Par-Max 3 model 31395-4024-3A is a pressure-controlled freshwater pump intended for reliable water delivery in onboard and mobile freshwater systems. With self-priming performance, integrated bypass for smoother flow, and included inlet straining, it supports consistent water pressure while helping reduce noise and cycling in everyday use.
Application
- Freshwater pressure supply in marine systems
- RV and recreational freshwater systems
- Potable water systems with 2–3 outlets (as stated)
Compatibility
- Replaces model JAB-31395-0394
- Listed as an alternative to Jabsco 31395-0394
- Listed as an alternative to Jabsco 31395-8100
- Listed as an alternative to Flojet R4405343A
- Listed as an alternative to Flojet R4405-343A
- Listed as an alternative to Flojet R3626344A
- Listed as an alternative to Flojet R3626-344A
Technical Specifications
Brand Jabsco Model / Supplier Code 31395-4024-3A Order Number 00320626 Barcode 671880841825 Product Portfolio Water Pressure Systems Voltage (Stated) 24V DC Flow Rate 11 L/min (2.9 US GPM) Output (Open Flow, Stated) Up to 11 L/min (3 GPM) Cut-In Pressure (Stated) 15 PSI Cut-In Pressure (Also Stated) Approximately 1.4 bar (20 PSI) Cut-Out Pressure 40 PSI (2.8 bar) Pressure Rating Operating max 40 PSI (2.8 bar); inlet max 30 PSI (2.1 bar) Current Draw (Stated) 3 A at 40 PSI (2.8 bar) Amperage (Max, Also Stated) 3 A Maximum Current (Also Stated) 4.4 A Fuse Requirement 5 A (not included) Self-Priming (Dry Prime) Up to 10 ft (3 m) Self-Priming (Also Stated) Up to 1.8 m Suction Height (Stated) 1.8 m Operating Temperature Range (Ambient and Fluid) 0°C to 60°C (32°F to 140°F) Operating Temperature Range (Also Stated) 0°C to 40°C (32°F to 104°F) Dimensions (HxWxD) 108 mm x 108 mm x 231 mm Dimensions (LxWxH) 230 mm x 107 mm x 107 mm Dimensions (Also Stated) 230 mm (L) x 152 mm (W) x 110 mm (H) Dimensions (Also Stated, Excluding Hose Ports) Height 10.6 cm; width 10.8 cm; length 23.1 cm Weight (Stated) 1.8 kg Product Weight (Also Stated) 1.6 kg Shipping Weight 2.80 kg Actual / Packed Weight (Also Stated) 1.80 kg actual; approximately 2.30 kg packed Lead Wires 12 in (305 mm), 16 AWG (1.5 mm²) Hose Connections Fittings for 13 mm (1/2 in) ID hose on inlet and outlet Included Ports (Stated) Straight snap-in ports, 2 x 13 mm (1/2 in) hose barb Strainer Inline strainer, 40 mesh (mini strainer stated) Pump Type 3 chamber aperture Diaphragm and Valves (Stated) 3-chamber Santoprene diaphragm and EPDM valves Approvals / Compliance ISO 8846 ignition protected; CE certified; RCM compliant; RoHS compliant
Product Details
- Ignition protection and certifications are listed for added confidence in appropriate installations.
- Bypass-equipped design is stated to provide smoother flow and decreased cycling.
- Self-priming capability is specified, supporting easier commissioning in typical freshwater layouts.
- Installation-ready fittings are included: quick connect fittings, snap-in hose ports, and an inline 40-mesh strainer.
Features
- 11 L/min stated flow performance with 40 PSI (2.8 bar) cut-out pressure
- Quiet operation (as stated)
- Runs dry without damage (as stated)
- Self-priming up to 3 m dry prime (as stated)
- Quick connect fittings and inline 40-mesh strainer included
-
