ID
1331385
$ 392.08
1-2 weeks delivery time
-
+

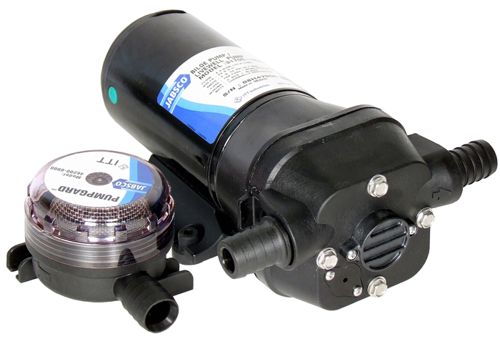

The Jabsco Par-Max 4 31705-0092 diaphragm pump unit provides continuous-duty bilge and shower drainage with 12V DC power, a self-priming lift up to 2.5 m, and output up to 16 L/min (also listed as 16.3 L/min). It delivers 978 LPH at 1 m head, supports 19 mm (3/4 in) hose connections, and includes a Pumpgard strainer for dependable operation in tough marine conditions. A waterproof coating, thermal overload protection, and marine safety approvals help protect the pump in demanding installations, with a listed weight of 3 kg.
- Description
- Ask a Question
-
Jabsco 31705-0092 Par-Max 4 Diaphragm Pump Unit for Bilge and Shower Drainage
The Jabsco Par-Max 4 is a self-priming electric diaphragm pump designed for marine bilge and shower applications. Built for continuous duty, it combines a robust diaphragm design with protective features to support reliable drainage and circulation where durability and safety compliance matter.
Application
- Bilge pumping
- Shower drains
- Livewell circulation
- Bilge and shower drain pumping
Technical Specifications
Brand Jabsco Supplier Code 31705-0092 Order Number 00320120 Voltage 12V DC Pump Type Diaphragm bilge pump Pump Type Detail 4 chamber aperture Flow Rate at 1 m Head 978 LPH (258 US GPH) Output (Maximum Listed) Up to 16 L/min (also listed as 16.3 L/min) Maximum Recommended Head 4 m (13.1 ft) Self-Priming / Suction Height (Listed) 2.5 m (8.2 ft); also listed as up to 3 m; also listed as self-priming to 10 ft Hose Size 19 mm (3/4 in) ID Fittings 2 x 19 mm Connections / Ports (Listed) 3/4 in hose connection; ports are 3/4 in hose barb or 1/2 in Current Draw 7 A Fuse Rating 15 A Pressure Switch Turns off at 50 PSI Dimensions (L x W x H) (Listed) 180 x 105 x 100 mm (7-1/4 x 4-1/8 x 3.9 in) Dimensions (Listed) 248 x 106 x 100 mm Dimensions (Listed) Length 19.6 cm; width 10.6 cm; height 10.0 cm Weight (Actual) 3.00 kg (approx. 3.50 kg packed) Shipping Weight 3.40 kg Packaged Dimensions (Listed) 17.00 cm (L) x 11.00 cm (H) x 34.00 cm (W) Approvals USCG 183.410; ISO8846 (ignition protection); ISO8849 Marine Electric Bilge Pump Standard; EN 50081-1 electromagnetic compatibility Warranty 1 year Product Portfolio (Listed) Electric bilge pumps; General Purpose Pumps
Product Details
- Continuous-duty motor with thermal overload protection for durability under extended operation
- Waterproof coating for tough marine conditions
- Self-priming design supports flexible mounting above wet bilges (self-priming values listed in specifications)
- Diaphragm design supports extended dry running (also described as run dry without damage)
- Includes Pumpgard strainer (also referenced as Pump Guard strainer; strainer part number listed as 46200-0000)
Features
- Self-priming capability
- Runs dry without damage (as listed)
- Oil resistant (as listed)
- Smooth flow (as listed)
- Snap-in ports (as listed)
-
