ID
1213672
$ 501.19
1-2 weeks delivery time
-
+
The Jabsco 31620-0094 Par Max 4 pressure-controlled pump delivers on-demand freshwater flow for marine and recreational systems using 24V DC power. It provides an open flow output of 16 liters per minute (3.5 gallons per minute) with a pressure switch that cuts in at 1.4 bar (20 psi) and cuts out at 2.8 bar (40 psi) to maintain consistent pressure at multiple outlets. A self-priming, multi-diaphragm design supports up to 1.5 m (4.9 ft) vertical lift, can run dry without damage, and includes an integrated bypass for smooth flow that removes the need for an accumulator tank, plus thermal overload protection for reliable operation in harsh environments.
- Description
- Ask a Question
-

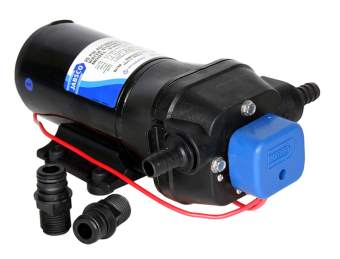

Jabsco 31620-0094 Par Max 4 On-Demand Freshwater Pressure Pump
The Jabsco 31620-0094 Par Max 4 is a pressure-controlled, on-demand pump built for freshwater delivery in marine and mobile recreational installations. Designed to maintain stable water pressure across multiple outlets, it combines a self-priming multi-diaphragm pumphead with an integrated pressure switch and bypass for smooth, quiet operation.
Application
- Marine and recreational freshwater systems
- Boats
- RVs
- Mobile freshwater systems requiring consistent pressure across multiple outlets
- Suitable for installations using 13 mm (1/2 in) hose or Hep20 push-fit connectors
Compatibility
- 13 mm (1/2 in) bore hose connections
- Hep20 push-fit connectors
Technical Specifications
Part Number 31620-0094 Series / Model Par Max 4 Voltage 24V DC Open Flow Output 16 liters/min (3.5 gallons/min) Output (Also Listed) 16.3 liters/min Pressure Switch (Cut-In) 1.4 bar (20 psi) Pressure Switch (Cut-Out / Shutoff) 2.8 bar (40 psi) Maximum Pressure 2.8 bar (40 psi) Maximum Current 4.4 amps Fuse Size 7 amps (not included) Maximum Suction Lift / Self-Priming Up to 1.5 m (4.9 ft) vertical lift Dimensions (L x W x H) 250 mm x 105 mm x 100 mm Packaged Dimensions (L x H x W) 17.00 cm x 11.00 cm x 34.00 cm Actual Weight 2.91 kg Packed Weight (Approx.) 3.41 kg Shipping Weight 3.20 kg Operating Temperature Range 0°C to 40°C (32°F to 104°F) Maximum Fluid Temperature Range (Also Listed) 0°C to 60°C (32°F to 140°F) Maximum Inlet Pressure 30 psi Certifications CE, RoHS compliant Ingress Protection IPX6
Product Details
- Pump type: Multi-diaphragm freshwater delivery pump
- Operation: Pressure-controlled on-demand via integrated, sealed pressure switch
- Flow control: Integrated bypass module for smoother flow and reduced cycling
- Dry-run capability: Can run dry without damage
- Protection: Thermal overload protection with automatic thermal cut-out
- Noise: Low-noise, quiet operation
- Installation: Horizontal mounting supported; vertical mounting referenced with pumphead facing down
- Included accessory: Strainer to help prevent debris from entering the pump
- Motor: Permanent magnet brushed motor; totally enclosed, non-ventilated enclosure
- Corrosion protection: Plastic housing protects the motor from corrosion
- Not submersible: The pump is not submersible
Materials
- Corrosion-resistant thermoplastic with stainless steel components
- Pump body: Polypropylene
- Pumphead and upper housing: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV diaphragm technology
- Check valves: EPDM
- Endbells and lower housing: Cast aluminum
- Motor shell: Powder-coated
Features
- Maintains steady system pressure with cut-in at 1.4 bar (20 psi) and cut-out at 2.8 bar (40 psi)
- Open flow output listed as 16 liters/min (3.5 gallons/min)
- Self-priming performance up to 1.5 m (4.9 ft) vertical lift
- Runs dry without damage for added operational security
- Integrated bypass helps smooth flow and eliminates the need for an accumulator tank
- Thermal overload protection supports long service life in demanding environments
- Snap-in ports for installation with 13 mm (1/2 in) hose or Hep20 push-fit connectors
- Low power consumption design described as energy-efficient
Availability and Replacement Information
- Status stated: Not available anymore
- Replacement / alternative stated: Jabsco Q402J-115S-3A
- Spare part stated: Catalog 18916-0040, pressure switch, 40 psi
Important Notes
- Designed for use with fresh water only; use with other fluids could result in damage
- Do not use motor pump units for pumping gasoline or other flammable liquids
- When powered, the pump can start automatically without warning if the pressure switch senses pressure below shutoff
-
