ID
1331380
$ 187.50
1-2 weeks delivery time
-
+
The Jabsco 31395-2524-3A Par-Max 3 pressure-controlled freshwater pump delivers up to 11 L/min (3 GPM) at 1.7 bar (25 psi) from a 24V supply, with built-in bypass pulsation dampening to reduce cycling, noise, and vibration. It includes quick-connect fittings and an inline 40 mesh mini strainer, uses an enclosed motor with an integrated pressure switch for automatic operation, and supports self-priming up to 1.8 m with dry-run protection for dependable onboard water pressure.
- Description
- Ask a Question
-

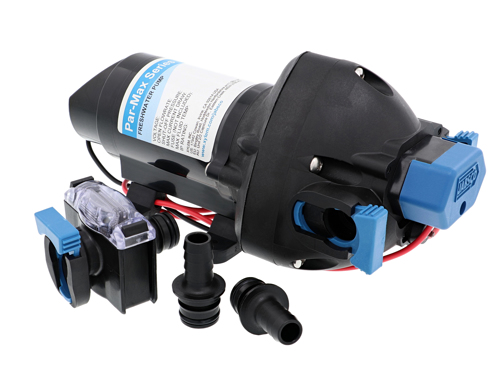

Jabsco 31395-2524-3A Par-Max 3 Freshwater Pressure System Pump
The Jabsco 31395-2524-3A Par-Max 3 is a 24V, pressure-controlled freshwater pump designed to provide steady water pressure while reducing cycling and operational noise. It replaces the Par-Max 2.9 pressure pump and combines a compact, durable build with installation-friendly connections and an integrated strainer for easier service.
Application
- Potable water systems with 2–3 outlets
- RVs
- Boats
- Agriculture
Compatibility
- Replaces Jabsco Par-Max 2.9 pressure pump
Technical Specifications
Supplier Code 31395-2524-3A Order Number 00320624 Barcode 671880841795 Voltage 24 V Output (Open Flow) Up to 11 L/min (3 GPM) Pressure (Cut-Off) 1.7 bar (25 psi) Pressure Switch Cuts in at approximately 1 bar (15 psi) and cuts out at 1.7 bar (25 psi) Self-Priming / Suction Height Up to 1.8 m Pump Type 3 chamber aperture Diaphragm / Valves 3-chamber Santoprene diaphragm with EPDM valves Fittings 2 × 13 mm (1/2 inch) hose connections; straight snap-in ports Inline Strainer 1 × 40 mesh mini strainer Maximum Amperage 3 A Recommended Fuse Size 5 A Dimensions Length 230 mm; width 152 mm; height 110 mm Dimensions (Alternate Listing) Length 23.1 cm; width 10.8 cm (excluding hose ports); height 10.6 cm Product Weight 1.8 kg Shipping Weight 2.80 kg Product Portfolio Water Pressure Systems
Product Details
- Built-in bypass with pulsation dampening helps smooth flow and decrease cycling
- Integrated pressure switch supports automatic operation
- Enclosed motor design for protected operation
- Vibration and noise-reducing mountings for quieter performance
- Self-priming capability up to 1.8 m
- Dry-run protection / runs dry without damage
- Quick-connect fittings and inline strainer for easier installation and maintenance
Features
- Delivers up to 11 L/min (3 GPM) with pressure control up to 25 psi
- Smoother flow and reduced cycling via bypass design
- Designed for potable water pressure applications with 2–3 outlets
-
