ID
1331366
$ 84.10
1-2 weeks delivery time
-
+
The Jabsco 30573-0003 mini accumulator tank helps maintain smooth, consistent water flow in compact pressure systems by buffering discharge pressure and reducing pump on/off cycling. It uses an internal rubber membrane and supports universal mounting in any position, with 13 mm (1/2 in) connection options including snap-in quick-connect/disconnect ports, plus supplied straight hose barbs and threaded ports. The nominal capacity is 0.6 L (effective working volume up to approximately 0.3 L), with max operating pressure 8.6 bar (125 psi) and a 10 psi (0.7 bar) pre-charge via an automotive-style tire valve, and it is listed as food-grade with NSF Standard 18; dimensions are stated as 214 mm height x 119 mm width x 110 mm depth and weight as 0.6 kg.
- Description
- Ask a Question
-

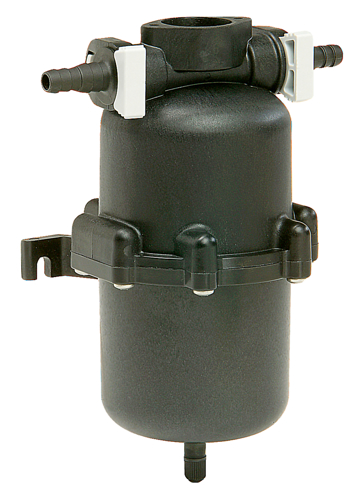

Jabsco 30573-0003 Compact Accumulator Tank With Membrane
The Jabsco 30573-0003 is a pressurized mini accumulator tank designed to stabilize water pressure and improve comfort in pressure-controlled water systems. Installed near the water pump discharge, it buffers pressure variations to reduce frequent pump cycling, helping extend pump life, conserve battery energy, and keep water flow smoother and quieter.
Application
- Compact pressure systems with one or two outlets
- Marine water supply systems
- RV water supply systems
- Pumped water systems controlled by a pressure switch
- May also be used with air-driven pumps
Technical Specifications
Type Pressurized mini accumulator tank Nominal Capacity 0.6 L Effective Working Volume Up to approximately 0.3 L Total Internal Volume (As Stated) 21.5 oz (0.65 L) Maximum Operating Pressure 8.6 bar (125 psi) Pre-Charge Pressure 10 psi (0.7 bar) Connections 13 mm (1/2 in) bore hose or threaded ports; snap-in quick-connect/disconnect ports Dimensions (As Stated) 214 mm (H) x 119 mm (W) x 110 mm (D); also stated as 18 cm (H) x 12 cm (W) x 11 cm (D) Weight 0.6 kg (shipping weight also stated as 0.90 kg) Supplier Code 30573-0003 Order Number 00320092 Barcode 671880582834
Product Details
- Membrane: Internal rubber membrane (diaphragm)
- Mounting: Can be mounted in any position
- Air Fill Valve: Standard automotive-style tire valve
- Construction (As Stated): Plastic accumulator tank; food-grade tank with nylon shell, butyl liner, and stainless steel fasteners
- Standards (As Stated): NSF Standard 18 listed
- Included Ports (As Stated): 2 straight 13 mm (1/2 in) hose barbs and 2 x 13 mm (1/2 in) threaded ports
Features
- Buffers pressure to prevent frequent pump cycling
- Smooths water flow and reduces pressure and flow variation between the pump and outlets
- Helps extend pump life and reduce battery drain
- Supports quieter water system operation
- Internal membrane eliminates maintenance and enables universal mounting
- Designed to fit tight installation spaces while delivering accumulator performance
-
