The Jabsco 30573-0000 accumulator pressure tank acts as a pressure buffer for pumped water systems, helping reduce rapid pump cycling and maintain a steadier flow at the outlets. It features a durable plastic body with an internal rubber membrane, a 1 liter nominal capacity (about 0.5 liters effective working volume), and a 13 mm (1/2") connection with flexible installation options including snap-in and threaded ports. Designed for compact pressure systems with one to two outlets and pressure-switch control, it supports operating pressure up to 8.6 bar (125 PSI) and can dispense up to 0.5 liters even when the pump is switched off; dimensions are 340 mm high x 120 mm wide x 110 mm deep, product weight is 0.8 kg, order number is 00320091, and barcode is 671880026819.
- Description
- Ask a Question
-

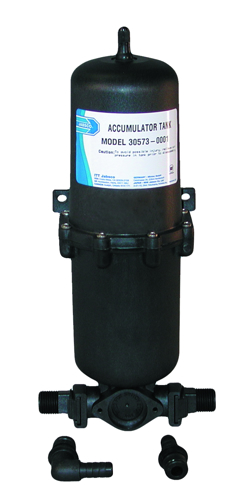

Jabsco 30573-0000 Pressurized Accumulator Tank With Membrane
The Jabsco 30573-0000 is a pressurized accumulator (pressure) tank designed to be installed near the discharge of a pressurized water pump. By buffering pressure and smoothing flow, it helps prevent rapid on/off cycling, reduces noise and battery drain, and supports longer pump life—especially noticeable in shower systems and other demand points.
Application
- Pressure buffer for pumped water systems controlled by a pressure switch
- Compact pressure systems with one to two outlets
- Helps stabilize flow and reduce cycling at system outlets
Compatibility
- PAR-MAX 2.9
- PAR-MAX 4.0
- PAR-MAX 3
- Jabsco pressure pumps
Technical Specifications
Supplier Code 30573-0000 Order Number 00320091 Barcode 671880026819 Nominal Capacity 1 liter Effective Working Volume About 0.5 liters Maximum Operating Pressure Up to 8.6 bar (125 PSI) Connection Size 13 mm (1/2") Connection Type 13 mm (1/2") bore hose or threaded ports Dimensions (H x W x D) 340 mm x 120 mm x 110 mm Weight 0.8 kg Shipping Weight 1.30 kg
Product Details
- Construction: Plastic body with internal rubber membrane
- Mounting: Mounts in any position
- Dispensing Capability: Can dispense up to 0.5 liters of water even when the pump is switched off
- Typical Use Environments Mentioned: Boats, RVs, motor caravans, coaches, and similar applications
Features
- Smooths water flow and reduces pump on/off cycling by lessening pressure and flow variation
- Helps reduce noise from the pump motor and from shock pressures (pipe hammer)
- Reduces battery drain and supports longer pump life
- Improves control of hot water temperature, especially with showers
- Connections via snap-in ports; included: 1 straight and 1 90° elbow 13 mm (1/2") hose barb, plus 2 x 13 mm (1/2") threaded ports
-
