The Jabsco 30580-1005 stainless steel pedestal pump end is a hygienic flexible impeller unit built in 316 stainless steel with a standard pressure Neoprene impeller and a carbon/ceramic mechanical seal. Supplied as a bare shafted pedestal pump end (no motor), it supports self priming at low or high speeds and is suited for viscous or air entrained products while maintaining a gentle pumping action for delicate liquids. It features 2 inch clamp type ports, delivers a nominal flow rate of 105 US gallons/min (397 litres/min) at 1750 rpm, and can handle viscosities up to 20,000 cps with chemical compatibility to the pump materials.
- Description
- Ask a Question
-

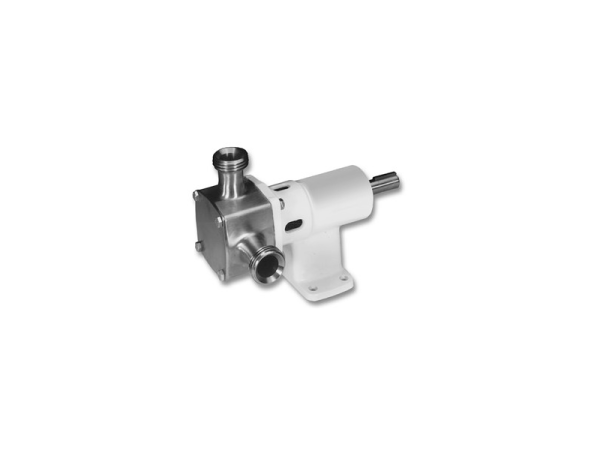

Jabsco 30580-1005 Hygienic Flexible Impeller Pedestal Pump
The Jabsco 30580-1005 is a stainless steel pedestal pump designed for applications where self priming and gentle product handling are essential. Built as a bare shafted pedestal pump end without a motor, it is aimed at demanding hygienic duties that involve viscous, air entrained, or delicate liquids.
Application
- Self priming transfer where priming performance is required at low or high speeds
- Hygienic processing of food, cosmetic, and pharmaceutical products
- Viscous liquids and fluids with viscosity up to 20,000 cps (with chemical compatibility to pump materials)
- Delicate liquids requiring gentle, low shear pumping action
- Liquids containing solids in suspension and air entrained liquids
Technical Specifications
Model / Catalog Number 30580-1005 Pump Type Hygienic flexible impeller pedestal pump Construction Material 316 stainless steel Impeller Standard pressure Neoprene Mechanical Seal Carbon/ceramic mechanical seal Ports 2 inch clamp type Configuration Bare shafted pedestal pump end only (without a motor) Nominal Flow Rate 105 US gallons/min (397 litres/min) at 1750 rpm Viscosity Capability Up to 20,000 cps (with chemical compatibility to pump materials) Self Priming (Dry) Vertical dry suction lift of 10 ft (Neoprene) with a minimum of 860 rpm; self priming from dry up to 5 m (16.4 ft) Suction Lift (Wet) Up to 22 ft Maximum Pressure Up to 3 bar Operating Temperature (Neoprene) 45°F to 150°F (7°C to 65°C) Certification Certified to US 3A Standard 02-11
Product Details
- Self priming performance: primes at low or high speeds
- Gentle pumping action: supports delicate liquids with low shear handling
- Flow characteristics: non pulsating flow
- Solids handling: handles hard and soft solids without clogging; able to transfer fluids with solids
- Air and abrasive tolerance: capable of transferring abrasive laden or air entrained liquids
- Serviceability: easy to service and maintain
- Cleaning: clean in place or easy strip clean
- Drain-down: can drain even the last few ounces of liquid from a container
- Form factor: compact size
Features
- Immediate self priming
- Operating equally well at low and high speeds
- Handling a wide viscosity range
- Gentle, low shear action for delicate products
- Non pulsating flow
- Easy to service and maintain
- Handles hard and soft solids without clogging
- Capable of transferring abrasive laden or air entrained liquids
- Able to transfer fluids with solids
- Compact size
- Can drain even the last few ounces of liquid from a container
- Certified to US 3A Standard 02-11
- Clean in place or easy strip clean
Spare Parts (Catalog Numbers)
- Impeller (Neoprene): 8984-0005
- Mechanical Seal (Ceramic - Nitrile): 18753-0253
- Body With Clamp Type Ports: 18753-0372
-
