ID
1334206
$ 5,856.49
1-2 weeks delivery time
-
+
The Jabsco 30570-3005 pump head kit is a replacement pump end designed for durability and efficient, low-shear transfer of demanding fluids. It features a 316 stainless steel body with a neoprene impeller, an epoxy-coated cast iron pump/motor adapter, and a food-grade nitrile elastomer seal system described with tungsten carbide and carbon/ceramic mechanical seal materials. Built for service-friendly cleaning, it supports Clean-In-Place (CIP) or easy strip cleaning, handles soft solids up to 16 mm, and fits 1-1/2 inch ports with ACME thread or clamp-type connections while accommodating a 5 HP, 1750 rpm motor fitment.
- Description
- Ask a Question
-

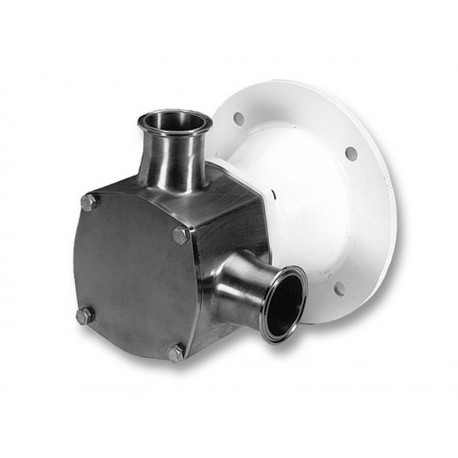

Jabsco 30570-3005 Pump Head Assembly for Flexible Impeller Transfer
The Jabsco 30570-3005 is a pump head kit supplied as a replacement pump end only (without a motor). It is built for hygienic transfer duties where self-priming and gentle, minimal-shear pumping are important, including applications involving viscous or air-entrained products.
Application
- Hygienic transfer for food, cosmetic, and pharmaceutical products
- Self-priming installations where gentle pumping action is required
- Fluids with soft solids in suspension (up to 16 mm)
Compatibility
- Can be fitted to a 5 HP, 1750 rpm motor (TEFC, C-Face, 184 TC frame)
- Port connection options: 1-1/2 inch ACME threads with bevel seat or clamp type
- Also described with 1-1/2 inch sanitary clamp type ports
Technical Specifications
Part Number 30570-3005 Construction (Body) 316 Stainless Steel Pump/Motor Adapter Epoxy-Coated Cast Iron Impeller Material Neoprene Shaft Material 316 Stainless Steel Bearings Uses Motor Bearings Seal (As Described) Tungsten Carbide Seal Seal Elastomer Food-Grade Nitrile Mechanical Seal (As Described) Carbon/Ceramic Mechanical Seal Port Type 1-1/2" ACME Threads With Bevel Seat or Clamp Type Port Size 1-1/2 Inch Pressure Standard Pressure Maximum Soft Solids Up to 16 mm Diameter Viscosity Capability (As Stated) Up to 20,000 cps (with chemical compatibility) Self-Priming Requirement (Dry Lift) 10 ft vertical dry suction lift requires a minimum of 860 rpm Self-Priming Capability (Wet Lift) Up to 22 ft suction lift when wet Impeller Temperature Range (Neoprene) 45°F to 150°F (7°C to 65°C) Certification / Listing (As Stated) Certified to US 3A Standard 02-11; 3A and USDA listed; materials per FDA standards
Product Details
- Configuration: Replacement pump end only (no motor included)
- Cleaning: Supports Clean-In-Place (CIP) or easy strip cleaning
- Pumping Action: Minimal shear to thixotropic fluids; gentle, low-shear action for delicate products
- Mounting and Flow: Pumps in either direction and can be mounted in any orientation
- Drainability: Can drain even the last few ounces of liquid from a container
Features
- Handles soft solids up to 16 mm in diameter
- Self-priming at low or high speeds (as described)
- Designed for easy service and maintenance
- Effective for viscous or air-entrained products (as described)
Notes and Available Spares (As Listed)
- Do Not Pump: Gasoline, solvents, thinners, or other flammable liquids
- Replacement Impeller: Catalog # 14346-0005, standard pressure neoprene impeller
- Replacement Pump Casing: Catalog # 18753-0365, stainless steel body with 1-1/2 inch clamp ports
-
