The Jabsco 23920-2423 Utility Puppy 2000 flexible impeller pump delivers 12V DC self-priming transfer for tasks such as livewell circulation, bait tank draining, oil changes, and bilge work. It combines a bronze pump head with an oil-resistant nitrile impeller and a continuous-duty motor, drawing up to 13A and using a 15A fuse. With 3/4" threaded ports (listed as BSP in multiple specs) plus dry-running protection and a compact, serviceable design with few wearing parts, it supports dependable marine, RV, and industrial use while meeting ISO 8846, ISO 8849, and BS EN 60945 certifications.
- Description
- Ask a Question
-

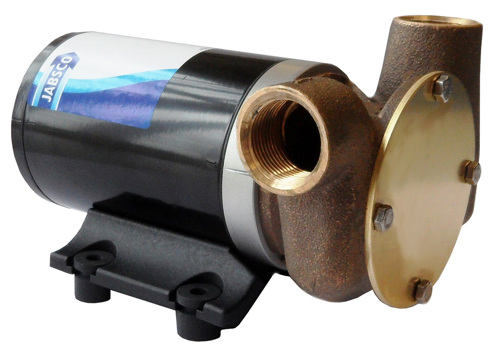

Jabsco 23920-2423 Utility Puppy 2000 Self-Priming Impeller Pump
The Jabsco Utility Puppy 2000 is a compact 12V DC flexible impeller pump built for reliable transfer and circulation where self-priming capability and durable construction matter. It is commonly used for livewells and bait tanks, bilge pumping, deck wash, and general-purpose fluid handling, with a serviceable design intended for ongoing maintenance.
Application
- Livewell circulation
- Draining bait tanks
- Oil changes
- Bilge pumping
- Deck wash
- General-purpose transfer for marine, RV, and industrial applications
Technical Specifications
Brand Jabsco Model 23920-2423 Order Number 00320430 Supplier Code 23920-2423 Voltage 12V DC Current Draw Max 13A Fuse 15A Flow Rate Listed as 30 L/min (7 GPM); also listed as 38 L/min max and 29.5 L/min at 3 m head; also listed as 32 L/min at 3 m total head Self-Priming Lift Listed as up to 2.4 m (8 ft); also listed as up to 1.2 m (4 ft) Connections / Ports Inlet/Outlet listed as 3/4" BSP thread; ports also listed as 3/4 inch NPT Dimensions (L x W x H) 172 x 125 x 105 mm; also listed as length 17.9 cm, width 12.4 cm, height 11 cm Weight 3.3 kg (approx. 3.8 kg packed); shipping weight listed as 4.00 kg Construction Bronze pump head; nitrile impeller Shaft Seal Nitrile lip seal Duty Continuous duty motor Dry-Running Protection Listed as up to 10 minutes after initial prime; also listed as dry running for 20 minutes after initial use Certifications / Compliance ISO 8846, ISO 8849, BS EN 60945; complies with USCG 183.410 Barcode 671880629386 Alternate To 23920-2403
Product Details
- Pump type: Flexible impeller, self-priming pump and motor unit
- Design focus: Compact, serviceable construction with few wearing parts
- Port orientation note: The dry-running feature is stated to mean the pump is not reversible, with discharge described as the vertical port
- Hose note (as listed): Connections are described for 3/4" BSP male threaded fittings used with 25 mm (1") internal diameter hose (hose not included); the pump is also described as designed to operate with 1 inch reinforced hose
Features
- High-flow, self-priming performance for bilge, deck wash, and general-purpose use
- Bronze pump head with oil-resistant nitrile impeller
- Dry-running capability (time stated varies by listing)
- Continuous-duty 12V DC motor
- Meets ISO 8846, ISO 8849, and BS EN 60945 certifications
Spare Parts Listed
- Impeller (nitrile): Catalog 6303-0003
- Shaft seal / body: Catalog SP2701-52
-
