ID
1331295
$ 678.50
1-2 weeks delivery time
-
+
The Jabsco 23920-2323 Utility Puppy 3000 impeller pump delivers heavy-duty, continuous-duty pumping on 24V DC power with up to 50 L/min output and self-priming capability up to 2.4 m. A corrosion-resistant bronze body with a nitrile impeller and mechanical seal supports demanding marine use, while dry-running capability for up to 10 minutes after priming helps protect operation during brief loss of flow. 3/4" BSP female threaded ports, 11A current draw, and ISO/CE certifications make it a practical choice for bilge, deckwash, and general-purpose transfer tasks.
- Description
- Ask a Question
-

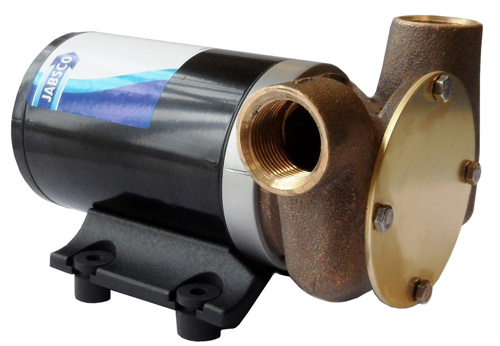

Jabsco 23920-2323 Utility Puppy 3000 Flexible Impeller Pump Unit
The Jabsco Utility Puppy 3000 is a heavy-duty, self-priming electric flexible impeller pump and motor unit designed for reliable fluid transfer in demanding environments. Built for marine applications and also referenced for RV and industrial use, it combines a compact footprint with high flow performance and run-dry capability after priming.
Application
- Bilge pumping
- Deckwash
- Wash downs
- General purpose pumping
- Bait tank service
- Marine service and general transfer pumping where self-priming and portable DC operation are desired
- Domestic and industrial applications
- Marine/domestic waste discharge
- Aqueous industrial fluid transfer
- Chemical processing
- Recirculation of aqueous media including coolants
- Sump emptying
Compatibility
- Replaces: Jabsco 23920-2313
- Replacement impeller: JAB-7273-0003
- Service kit: SK415-0113 (service kit with impeller, O-ring, and seal)
Technical Specifications
Brand Jabsco Model 23920-2323 Order Number 00320429 Supplier Code 23920-2323 Barcode 671880629447 Voltage 24V DC Current Draw 11A Fuse 15A Maximum Flow Rate 50 L/min Flow at 1 m Head 2880 L/h Flow at 2 m Head 2700 L/h Flow at 6 m Head 2280 L/h Self-Priming Lift Up to 2.4 m Connections (Inlet/Outlet) 3/4" BSP female thread Ports (Also Stated) 3/4 inch BSP Thread (Also Stated) 3/4 inch NPT Dimensions (L x W x H) 220 x 125 x 105 mm Dimensions (Also Stated) Height 9 cm; Width 12 cm; Length 22 cm Weight 4.65 kg Shipping Weight 5.30 kg Certifications ISO 8846 (ignition), ISO 8849 (bilge pump), CE, USCG 183.410
Product Details
- Construction: Bronze body / bronze pump head
- Impeller material: Oil-resistant nitrile impeller
- Seal: Carbon ceramic shaft seal; also stated as a nitrile/carbon/ceramic mechanical seal
- Duty: Continuously rated, heavy-duty pump
- Dry running: Dry running for 10 minutes (after initial use) and capable of dry running for up to 10 minutes after priming
- Mounting note: Must not be vertical with the impeller above the motor
- Mounting note (also stated): May be mounted in any position without loss of efficiency; suggested pump head down if vertical mounting is desired
- Close-coupled design: Pump is close coupled to a 24V DC motor
- Non-reversible note: Dry-running feature means the pump is not reversible; discharge is the vertical port
- Connection note: Connections are for 3/4" BSP male threaded fittings in combination with 25 mm (1") inside diameter hose (hose not included)
Features
- Self-priming up to 2.4 m for easier startup
- Corrosion-resistant bronze construction for marine environments
- High-flow performance across multiple head heights
- Designed for bilge, deckwash, and general-purpose use
- Mechanical seal for extra long life
- Handles solids; solids size stated as below approximately 6–7 mm
- Will not airlock; continues to operate even when air passes through the system
- Complies with ISO and CE requirements as listed
-
