The Jabsco 23920-2523 Utility Puppy 2000 impeller pump delivers 24V DC utility pumping for marine tasks with self-priming capability and a continuous-duty motor for dependable operation. A bronze pump head and nitrile impeller support durability, while the run-dry feature helps protect the pump during short periods without flow after initial prime. With 7.5A maximum current draw, 10A fuse protection, and 3/4 inch threaded ports, it suits bilge, deck wash, bait tanks, wash downs, and general-purpose transfer applications.
- Description
- Ask a Question
-

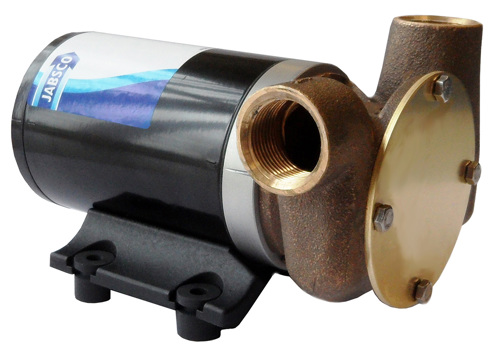

Jabsco 23920-2523 Utility Puppy 2000 Flexible Impeller Pump Unit
The Jabsco 23920-2523 Utility Puppy 2000 is a 24V DC self-priming flexible impeller pump built for demanding marine utility work. Its bronze construction and quiet, continuous-duty motor support dependable service for tasks such as bilge pumping, deck wash, bait tanks, and general-purpose fluid transfer where short-duration dry running can occur after the pump has been primed.
Application
- Bilge pumping
- Deck wash and wash downs
- Bait tanks
- General-purpose marine service
- Marine, domestic, and industrial applications (as stated)
- Chemical processing (as stated)
- Recirculation of aqueous media including coolants (as stated)
- Sump emptying (as stated)
Compatibility
- Fluids compatible with the stated construction materials
- Connections described for 3/4 inch threaded fittings and use with 25 mm (1 inch) inside-diameter hose (hose not included)
Technical Specifications
Brand Jabsco Model 23920-2523 Order Number 00320438 Supplier Code 23920-2523 Barcode 671880629393 Voltage 24V DC Current Draw Max 7.5A Fuse 10A Flow Rate (Stated) 30 L/min (7 GPM) Output (Stated) Up to 38 L/min; 29.5 L/min at 3 m head; also stated 32 L/min at 3 m total head Self-Priming (Stated) Up to 2.4 m (8 ft); also stated up to 1.2 m (4 ft) Port Thread (Stated) 3/4 inch BSP thread; also referenced as 3/4 inch NPT ports Dimensions (L x W x H) 172 x 125 x 105 mm Dimensions (Stated) Height 11 cm; width 12.4 cm; length 17.9 cm Weight 3.3 kg (approx. 3.8 kg packed); shipping weight stated as 4.00 kg Dry-Running Protection (Stated) Up to 10 minutes after initial prime; also stated dry running for 20 minutes after initial use Construction Bronze pump head/body; nitrile impeller; nitrile lip seal Certifications and Compliance (Stated) ISO 8846; ISO 8849; BS EN 60945; complies with USCG 183.410 and ISO 8846 (marine) Temperature Guidance (Stated) Nitrile impeller recommended for 10C to 82.2C (50F to 180F)
Product Details
- Pump Type: Self-priming flexible impeller pump
- Motor Duty: Continuous duty / continuously rated (as stated)
- Run-Dry Feature: Designed to tolerate short-duration running without flow after initial prime (times stated above)
- Serviceability: Simple, serviceable design with few wearing parts (as stated)
- Installation Note (Stated): May be mounted in any position; vertical mounting suggestion is pump head down
- Operational Note (Stated): Not reversible; discharge is the vertical port
- Solids Guidance (Stated): Solids handling noted, with solids size below approximately 63 mm to 73 mm
- Alternate Reference (Stated): Alternate to 23920-2503
Features
- Bronze construction with nitrile impeller for robust marine utility use
- Self-priming capability for easier start-up in transfer and washdown applications
- Quiet, continuous-duty 24V DC motor for ongoing service
- Run-dry protection feature for short periods after initial prime (as stated)
- 3/4 inch threaded ports (thread type stated as BSP, and also referenced as NPT)
Spare Parts (Stated)
- Impeller: Catalog # 6303-0003, nitrile
- Shaft Seal: Catalog # SP2701-52
-
