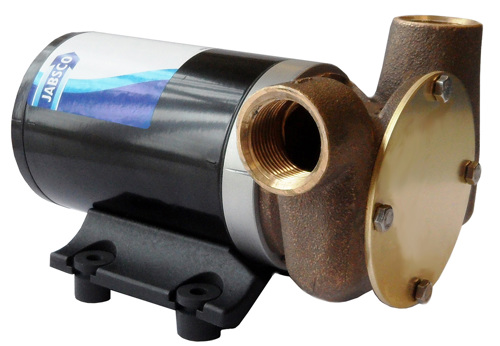

Jabsco 23920-2223 - Utility Puppy 3000 Self-Priming Pump 12V

Jabsco 23920-2223 - Utility Puppy 3000 Self-Priming Pump 12V

The Jabsco 23920-2223 Utility Puppy 3000 Self-Priming Pump is a reliable and efficient solution for various marine, RV, and industrial applications. Designed for long-term use, it features a 12V DC motor and a non-rusting bronze body. This pump delivers up to 50 liters per minute (11 gallons per minute) of output with a maximum head of 12 meters, making it ideal for water transfer, bilge pumping, and other high-demand tasks. With a built-in dry-running protection system and self-priming capability up to 2.4 meters, it ensures that the pump will continue to operate even when temporarily deprived of water. The pump's robust design includes a carbon-ceramic shaft seal, providing durability and reducing maintenance requirements. With easy installation through ¾” BSP threaded ports, this pump is perfect for a wide range of applications that require consistent performance.

Key Features:

• Rapid self-priming from dry up to 2.4 meters (7.8 feet) for quick and reliable operation.
• Built-in dry-running protection for up to 10 minutes after initial prime, ensuring continued operation without damage.
• Non-rusting bronze body for exceptional durability, perfect for harsh marine and industrial environments.
• Carbon-ceramic shaft seal for enhanced performance and longevity.
• High-output capacity of up to 50 liters per minute (11 gallons per minute), ideal for efficient water transfer.
• Maximum head of 12 meters (39.4 feet), making it versatile for various applications requiring vertical lift.
• Simple and fully serviceable design with minimal wearing parts for easier maintenance and long-term reliability.
• ¾” BSP threaded inlet and discharge ports for compatibility with standard hoses, ensuring easy installation.
• Continuously rated electric motor, providing long-lasting, reliable operation.

Specifications:

• Model: Jabsco 23920-2223
• Voltage: 12V DC
• Fuse Size: 25 amps
• Maximum Current: 21 amps
• Output: Up to 50 liters per minute (11 gallons per minute)
• Maximum Head: 12 meters (39.4 feet)
• Ports: ¾” BSP threaded inlet and discharge ports
• Dimensions: Length 220mm, Width 125mm, Height 105mm
• Shipping Weight: 4.65 kg (Approx. 5.15 kg packed)
• Material: Non-rusting bronze body, carbon-ceramic shaft seal
• Motor Type: Continuously rated electric motor
• Priming Capability: Self-priming up to 2.4 meters (7.8 feet)
• Dry-running Protection: Built-in for up to 10 minutes
• Maximum Pressure: 0.4 bar (6 psi)
• Flow Rate: 50 L/min (11 GPM)
• Power Consumption: 250W
• Material of Impeller: Nitrile Rubber for optimal durability
• Mounting Position: Can be mounted horizontally or vertically
• Temperature Range: -10°C to 60°C (14°F to 140°F)
• Safety Certifications: CE, UL Listed for electrical safety
• Noise Level: < 70 dB(A) for quieter operation
• Included Accessories: Mounting brackets, wiring harness, and installation instructions

Installation Instructions:

• Ensure the pump is installed in a well-ventilated area for efficient cooling and easy access for maintenance.
• Connect the ¾” BSP threaded ports to the appropriate hoses for water intake and discharge.
• Ensure that the fuse size (25 amps) matches the electrical requirements of your system.
• Make sure the pump is properly primed before use, checking for air locks in the system to maintain optimal performance.
• For optimal operation, the pump should be installed below the maximum head limit of 12 meters.
• Check all electrical connections to ensure secure power supply before starting the pump.
• Regularly service the pump and inspect the carbon-ceramic shaft seal to prolong its operational life.
