ID
1300358
$ 952.34
1-2 weeks delivery time
-
+
The Vetus SA302000A Propeller Shaft is a precision-built marine shaft made from Duplex 1.4462 stainless steel, featuring a 30 mm diameter, 2000 mm length, and a 25 mm cone taper. Supplied complete with a key, tab washer, and a propeller nut incorporating a zinc anode, this ISO 4566-compliant shaft provides exceptional corrosion resistance, high tensile strength, and smooth vibration-free operation, making it ideal for both professional and recreational vessels in saltwater conditions.
- Description
- Ask a Question
-
Vetus SA302000A Duplex Stainless Steel Propeller Shaft Ø30 mm, Length 2000 mm
The Vetus SA302000A Propeller Shaft is designed for demanding marine applications, offering superior strength, precision, and corrosion resistance. Manufactured from Duplex 1.4462 stainless steel, it delivers exceptional performance and long service life even in harsh saltwater environments. Fully compliant with ISO 4566 standards, the shaft ensures precise taper and key dimensions for seamless integration with compatible propellers.
Each shaft features a 1:10 taper and a 25 mm cone at one end, providing perfect alignment and efficient torque transmission. Supplied as a complete assembly, it includes a key, tab washer, and a propeller nut with an integrated zinc anode for optimal galvanic protection. The other end can be shortened to the required length for specific installations.
Key Advantages
- High-Performance Alloy: Made of Duplex 1.4462 stainless steel with excellent resistance to pitting and corrosion.
- Increased Strength: Approximately 30% higher tensile strength than AISI 316.
- Superior Hardness: About 40% higher than AISI 316, reducing wear in rubber bearings.
- Quiet Operation: Precision balance ensures smooth, vibration-free propulsion.
- Complete Installation Kit: Includes key, tab washer, and propeller nut with integrated zinc anode.
Technical Specifications

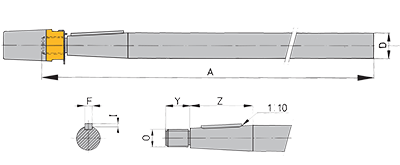

Parameter Specification Model SA302000A Manufacturer Vetus Material Duplex 1.4462 stainless steel Corrosion Resistance Superior to AISI 316 and Aquamet 17/22 Tensile Strength Approx. 30% higher than AISI 316 Hardness Approx. 40% higher than AISI 316 Taper Ratio 1 : 10 (ISO 4566 standard) Shaft Diameter (D) 30 mm Shaft Length (A) 2000 mm Cone Diameter 25 mm Thread (O) M20 × 1.5 Key Width (E) 8 mm Key Depth (I) 3 mm Taper Start Diameter (Y) 25 mm Taper Length (Z) 55 mm Supplied Components Key, tab washer, propeller nut with integrated zinc anode
Engineered to meet the highest marine propulsion standards, the Vetus SA302000A propeller shaft combines superior materials, precision machining, and outstanding durability — ensuring smooth, reliable operation and extended lifespan for any marine vessel.
-
