Vetus ZWBKIT is a water lubrication connection kit for marine propeller shaft assemblies, designed to supply water from the engine's raw water cooling circuit. The kit includes an 18–10–18 mm T-piece (TP1810), 3 metres of Ø10 mm hose (DWHOSE10A), and four AISI 304 stainless steel hose clamps (HCS08) for Ø8–16 mm connections.
- Description
- Ask a Question
-
Vetus ZWBKIT Stern Gear Water Lubrication Connection Kit with T-Piece, 3 m Hose and Clamps
The Vetus ZWBKIT Water Lubrication Connection Kit is designed to supply water to a marine propeller shaft assembly using the main engine's raw water cooling circuit. It provides the components required to establish a water lubrication connection for a compatible stern gear installation.
The kit includes an 18–10–18 mm T-piece, a 3-metre Ø10 mm water hose and four stainless steel hose clamps. These components allow a water supply line to be connected from the engine cooling circuit to the shaft assembly.
Key Features
- Water lubrication connection: Designed to supply water to the propeller shaft assembly from the engine's raw water cooling circuit.
- Complete connection kit: Includes a T-piece, water hose and hose clamps.
- T-piece dimensions: 18–10–18 mm.
- Water hose: 3 metres of Ø10 mm hose.
- Stainless steel clamps: Four AISI 304 hose clamps for Ø8–16 mm connections.
- Marine application: Water lubrication of compatible stern gear and propeller shaft installations.
Technical Specifications
Parameter Specification Manufacturer Vetus Part Number ZWBKIT Product Type Stern Gear Water Lubrication Connection Kit Application Water lubrication of marine propeller shaft assemblies Water Source Main Engine Raw Water Cooling Circuit T-Piece Dimensions 18–10–18 mm Hose Diameter 10 mm Hose Length 3 m Hose Clamp Material AISI 304 Stainless Steel Hose Clamp Size 9 mm Width, Ø8–16 mm

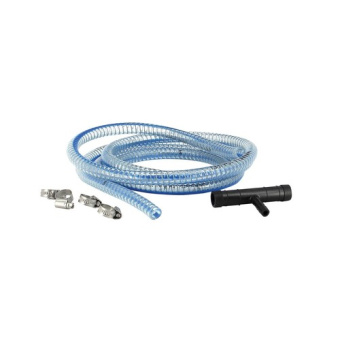

Kit Contents
Component Vetus Code Quantity Specification T-Piece TP1810 1 18–10–18 mm Water Hose DWHOSE10A 3 m Ø10 mm Hose Clamps HCS08 4 AISI 304 stainless steel, 9 mm width, Ø8–16 mm
Application and Installation
The Vetus ZWBKIT is intended for installations where water from the engine's raw water cooling circuit is used to lubricate the propeller shaft assembly.
The supplied T-piece provides a connection point within a compatible engine cooling water hose, while the Ø10 mm hose carries water to the stern gear assembly. The included hose clamps secure the relevant hose connections.
Before installation, verify the dimensions of the engine cooling circuit hose and the water connection requirements of the stern gear assembly.
-
