The Vetus SA301500A Propeller Shaft is a precision-engineered marine component with a 30 mm diameter and 1500 mm length, featuring a 25 mm cone taper and manufactured from Duplex 1.4462 stainless steel. Supplied complete with a key, tab washer, and propeller nut incorporating a zinc anode, it offers superior tensile strength, hardness, and corrosion resistance compared to AISI 316. Ideal for saltwater environments, this ISO 4566-compliant shaft ensures smooth, vibration-free propulsion and long-term durability.
- Description
- Ask a Question
-
Vetus SA301500A Duplex Stainless Steel Propeller Shaft Ø30 mm, Length 1500 mm
The Vetus SA301500A Propeller Shaft is crafted from high-grade Duplex 1.4462 stainless steel, ensuring exceptional strength, durability, and corrosion resistance in marine applications. This shaft combines superior metallurgical properties with precision machining to meet ISO 4566 standards, guaranteeing a perfect fit and reliable performance for a wide range of vessel propulsion systems.
One end of the shaft is machined with a 1:10 taper and keyway, while the other end can be cut to the required length. Each unit is supplied with a matching key, tab washer, and a propeller nut fitted with an integrated zinc anode to prevent galvanic corrosion. The 25 mm cone taper ensures secure propeller mounting and consistent alignment during operation.
Key Advantages
- Exceptional Strength: Approximately 30% higher tensile strength than AISI 316 stainless steel.
- Enhanced Hardness: Around 40% higher hardness for improved wear resistance in bearings.
- Superior Corrosion Resistance: Outperforms AISI 316 and Aquamet 17/22, even in saltwater environments.
- Quiet and Smooth Operation: Precision balance minimizes vibration and noise.
- Fully Equipped: Includes key, tab washer, and propeller nut with integrated zinc anode.
Technical Specifications

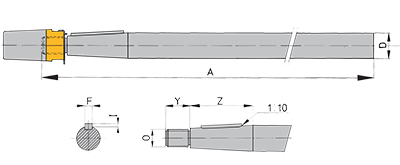

Parameter Specification Model SA301500A Manufacturer Vetus Material Duplex 1.4462 stainless steel Corrosion Resistance Superior to AISI 316 and Aquamet 17/22 Tensile Strength Approx. 30% higher than AISI 316 Hardness Approx. 40% higher than AISI 316 Taper Ratio 1 : 10 (ISO 4566 standard) Shaft Diameter (D) 30 mm Shaft Length (A) 1500 mm Cone Diameter 25 mm Thread (O) M20 × 1.5 Key Width (E) 8 mm Key Depth (I) 3 mm Taper Start Diameter (Y) 25 mm Taper Length (Z) 55 mm Supplied Components Key, tab washer, propeller nut with integrated zinc anode
With its advanced Duplex stainless-steel composition and precision manufacturing, the Vetus SA301500A propeller shaft delivers unmatched reliability, longevity, and smooth propulsion performance for demanding marine conditions.
-
