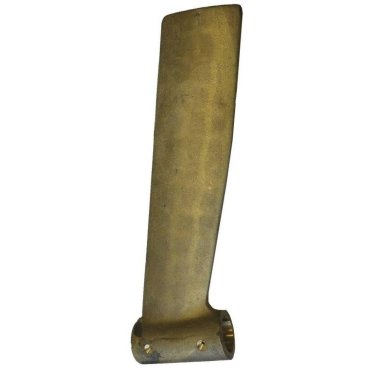

VDM Reya Bare Propeller Shaft Bracket

ID 1366702

$ 500.39

1-2 weeks delivery time

Diameter, mm:

22-25
25-30

The VDM Reya bare propeller shaft bracket is designed for integration into the hull structure and supports shaft diameters from 22 mm to 30 mm. Available in two lengths: 370 mm (for 22–25 mm shafts) and 420 mm (for 25–30 mm shafts). Compatible with SAEBG series bushings depending on configuration. Supplied as a raw unit for structural installation.

Description
Ask a Question

VDM Reya Bare Propeller Shaft Bracket – 370 mm / 420 mm, for 22–30 mm Shaft

The VDM Reya propeller shaft bracket is a structural component designed to support and align the propeller shaft within the hull. Supplied as a bare unit, it is intended for integration into the hull during installation, allowing precise positioning and secure mounting.

This bracket is available in two length configurations to match different shaft diameter ranges, ensuring compatibility with a variety of propulsion setups.

Key Features

Bare propeller shaft bracket for structural installation
Designed for shaft alignment and support
Available in two length options
Compatible with SAEBG series bushings

Technical Specifications

Length	Shaft Diameter	Recommended Bushings	Code
370 mm	22–25 mm	SAEBG223680 / SAEBG236100	SAELAC222537
420 mm	25–30 mm	SAEBG2536100 / SAEBG3040120	SAELAC253042

The VDM Reya propeller shaft bracket provides a reliable solution for shaft support in marine propulsion systems where direct integration into the hull is required.
