ID
1366665
$ 309.33
1-2 weeks delivery time
Diameter, mm:
- 22
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 70
- 1"
The DELOT & Cie Monobloc Rope Cutter is a solid AISI 316L stainless steel shaft-mounted cutter designed to protect propulsion systems from ropes and debris. Available for shaft diameters from 22 mm to 70 mm, with outer diameters from 79 mm to 180 mm and thicknesses of 18 mm or 31 mm. Supplied as a complete kit including set screw, hex key, thread lock burette, reusable red protection shells, and installation instructions. Designed for easy maintenance, including cleaning with a pressure washer.
- Description
- Ask a Question
-

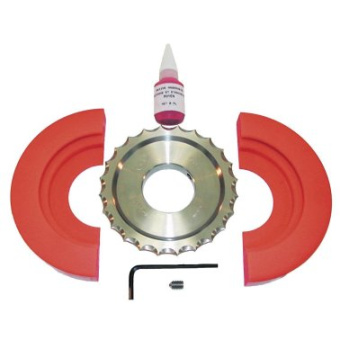

DELOT & Cie Rope Cutter Monobloc AISI 316L – 22–70 mm Shaft Diameter
The DELOT & Cie Rope Cutter Monobloc is a marine shaft-mounted cutting device designed to protect propulsion systems from ropes, fishing lines, and floating debris. Manufactured from AISI 316L stainless steel, it provides excellent corrosion resistance and durability in marine environments.
This monobloc rope cutter is available in multiple sizes to suit shaft diameters from 22 mm to 70 mm. Each model is engineered with specific outer diameter and thickness combinations to ensure effective cutting performance and reliable operation.
Key Features
- Monobloc rope cutter for propeller shafts
- Material: AISI 316L stainless steel
- Compatible with shaft diameters from 22 mm to 70 mm
- Designed for protection against ropes and debris
- Easy maintenance, suitable for cleaning with pressure washer

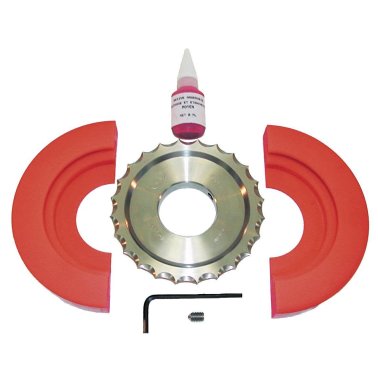

Kit Includes
- 1 rope cutter
- 1 set screw
- Hexagonal key
- Thread lock burette
- Set of red protection shells
- Installation instructions
Technical Specifications
Shaft Diameter Outer Diameter Thickness Code 22 mm 80 mm 18 mm SAELAR10022K 25 mm 79 mm 18 mm SAELAR10025K 30 mm 79 mm 18 mm SAELAR10030K 35 mm 100 mm 18 mm SAELAR10035K 40 mm 100 mm 18 mm SAELAR10040K 40 mm 120 mm 18 mm SAELAR12040K 50 mm 120 mm 18 mm SAELAR12050K 55 mm 150 mm 31 mm SAELAR15055K 60 mm 150 mm 31 mm SAELAR15060K 70 mm 180 mm 31 mm SAELAR18070K
The DELOT & Cie Rope Cutter Monobloc provides a durable and practical solution for shaft protection in marine propulsion systems.
-
