The Carco Split Seal is a split-type shaft seal manufactured from NBR (Nitrile Butadiene Rubber) and stainless steel, designed for shaft sealing applications where installation without shaft removal is required. The range covers shaft diameters from Ø25 mm to Ø120 mm, with outer diameters from Ø47 mm to Ø160 mm and widths from 10 mm to 16 mm depending on the size. Each seal is supplied as 1 piece, identified by its Carco product number and EAN code, and specified by dimensions A (shaft diameter) × D (outer diameter) × B (width).
- Description
- Ask a Question
-

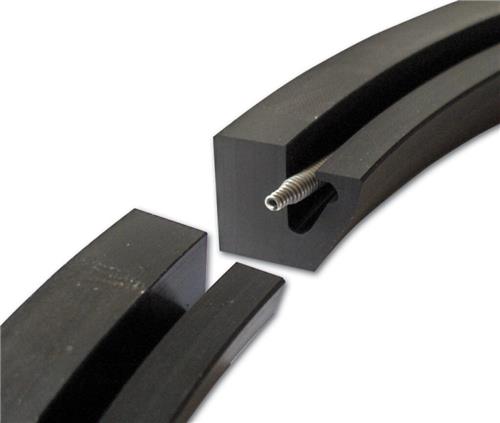

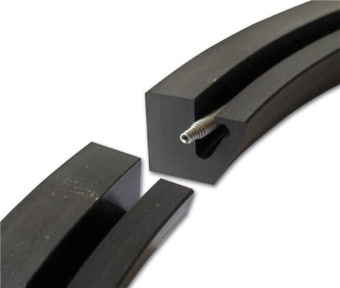

Carco Split Seal NBR / Stainless Steel for Shaft Ø25–Ø120
The Carco Split Seal is a shaft sealing component manufactured from NBR (Nitrile Butadiene Rubber) and stainless steel. The split construction allows installation without removing the shaft, making it suitable for maintenance and replacement in mechanical and marine shaft applications.
The range includes multiple sizes covering shaft diameters from Ø25 mm to Ø120 mm. Each seal is supplied as 1 piece and identified by its product number and EAN code. Dimensions are specified as A (shaft diameter) × D (outer diameter) × B (width).
Materials
- NBR (Nitrile Butadiene Rubber)
- Stainless Steel
Product Specifications
Product Number EAN Code Shaft Diameter (A) Outer Diameter (D) Width (B) 96025.SPLIT 8720193033303 25 mm 47 mm 10 mm 96030.SPLIT 8720193033327 30 mm 52 mm 10 mm 96035.SPLIT 8720193033341 35 mm 57 mm 10 mm 96040.SPLIT 8720193033365 40 mm 65 mm 11 mm 96045.SPLIT 8720193033389 45 mm 70 mm 11 mm 96050.SPLIT 8720193033402 50 mm 75 mm 11 mm 96060.SPLIT 8720193033426 60 mm 85 mm 11 mm 96070.SPLIT 8720193033440 70 mm 102 mm 12.5 mm 96080.SPLIT 8720193033464 80 mm 112 mm 12.5 mm 96090.SPLIT 8720193033488 90 mm 122 mm 12.5 mm 96100.SPLIT 8720193033501 100 mm 132 mm 12.5 mm 96110.SPLIT 8720193033525 110 mm 150 mm 16 mm 96120.SPLIT 8720193033549 120 mm 160 mm 16 mm
Key Features
- Split shaft seal construction
- Manufactured from NBR and stainless steel
- Designed for shaft sealing applications
- Available in multiple sizes for shafts Ø25–Ø120 mm
- Each unit supplied as 1 piece
-
