ID
1350967
$ 92.55
1-2 weeks delivery time
Size, mm:
- 3/8"x3/8"
- 1/2"x3/8"
- 5/8"x3/8"
- 1"x3/8"
- 3/4"x3/8"
- 1 1/4"x3/8"
- 2"x3/8"

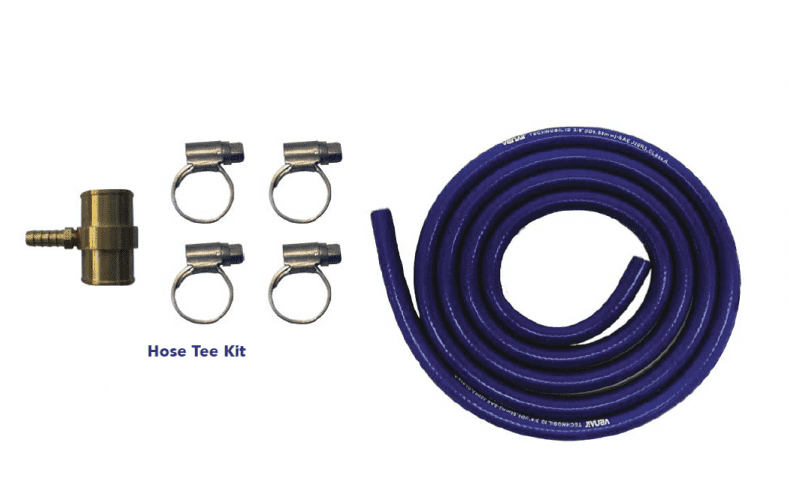

The Tides Marine Water Pick-Up Kits are designed to connect Tides Marine SureSeal shaft seals to the engine’s raw water cooling system, supplying water required for lubrication of the lip seal and PTFE bearing inside the SureSeal housing. The kits are available for hose sizes ranging from 3/8" to 2" with a 3/8" branch connection, and are manufactured from silicone. Each kit includes the components required to route cooling water from the engine cooling circuit to the SureSeal injection fitting.
- Description
- Ask a Question
-
Tides Marine Water Pick-Up Kits for SureSeal – Raw Water Cooling Connection Kits (3/8" to 2" Hose Sizes)
Tides Marine Water Pick-Up Kits are designed to connect Tides Marine SureSeal shaft seal systems to the engine’s raw water cooling circuit. The supplied cooling water lubricates the lip seal and PTFE bearing inside the SureSeal housing, ensuring proper operation and long service life.
The kits provide the necessary connection between the engine cooling system and the SureSeal water injection fitting. Water is typically taken from the raw water circuit using a hose tee or a threaded drain plug connection in components such as the heat exchanger, oil cooler, or water pump.
Key Features
- Designed for Tides Marine SureSeal shaft seal systems
- Supplies cooling water for lubrication of the lip seal and PTFE bearing
- Connects the engine raw water cooling circuit to the SureSeal injection fitting
- Available in multiple hose sizes
- Manufactured from silicone
- Supplied as complete installation kits
Available Water Pick-Up Kits
Part Number Hose Size Inner Diameter Shaft Diameter Range Material EAN TK0375-3/8-218 3/8" x 3/8" — — Silicone 8720193082295 TK0500-3/8-218 1/2" x 3/8" — — Silicone 8720193082301 TK0625-3/8-218 5/8" x 3/8" 16 mm 35 – 75 mm Silicone 8720193082318 TK0750-3/8-218 3/4" x 3/8" 19 mm 35 – 75 mm Silicone 8720193082325 TK1000-3/8-218 1" x 3/8" 25 mm 35 – 75 mm Silicone 8720193076645 TK1250-3/8-218 1 1/4" x 3/8" 32 mm 35 – 75 mm Silicone 8720193082332 TK2000-3/8-218 2" x 3/8" — — Silicone 8720193082394
Recommended Water Pick-Up Points
- Hose tee between heat exchanger and riser (preferred location)
- Hose tee between oil cooler and heat exchanger
- Hose tee between water pump and oil cooler
- Drain plug fitting in heat exchanger
- Drain plug fitting in oil cooler (pressure side of pump)
- Drain plug fitting at the back of the water pump (pressure side)
Application
- Tides Marine SureSeal shaft seal systems
- Marine propulsion engines with raw water cooling systems
- Lubrication water supply for shaft seal assemblies
-
