R&D Propeller Shaft Clamping Hubs

ID 1351193

$ 295.12

1-2 weeks delivery time

Type:

4"
5"
Yanmar 4"
Yanmar 5"

Diameter, mm:

R&D Marine Propeller Shaft Clamping Hubs are steel clamping hubs for marine shaft installations with fixed (non-variable) shaft diameters, supplied as 1 piece per variant. This range includes 4" and 5" hubs with shaft diameter options from Ø25 mm to Ø50 mm (depending on model) and defined pitch circle diameters (PCD) such as 82.5 mm, 107.95 mm, 78 mm (Yanmar 4"), and 100 mm (Yanmar 5").

Description
Ask a Question

R&D Marine Propeller Shaft Clamping Hubs – 4" / 5" Steel Hubs for Fixed Shaft Diameters (Ø25–50 mm), Multiple PCD Options

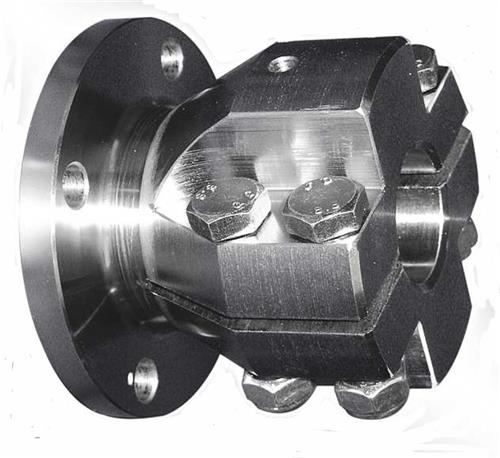

R&D Marine Propeller Shaft Clamping Hubs are robust steel clamping hubs designed for marine applications. The range covers 4" and 5" hub sizes and is intended for installations with a fixed shaft diameter (i.e., Variable Shaft Diameter: No on all listed variants). Each hub is supplied as 1 piece.

Key Features

Brand: R&D Marine
Material: Steel
Hub sizes: 4" and 5" (depending on variant)
Fixed shaft diameter only: Variable Shaft Diameter: No
Unit of sale: 1 piece
Selection by specification: choose by hub size, shaft diameter (mm), and pitch circle diameter (PCD)

Variants / Specifications

Variant	Product Number	Hub Size	Shaft Diameter (mm)	Pitch Circle Diameter (mm)	EAN	Variable Shaft Diameter	Sales Unit
R&D Marine Clamping Hub 4" Ø25mm	CF165-25	4"	25	82.5	8720193045481	No	1 piece
R&D Marine Clamping Hub 4" Ø30mm	CF165-30	4"	30	82.5	8720193045498	No	1 piece
R&D Marine Clamping Hub 4" Ø35mm	CF165-35	4"	35	82.5	8720193045504	No	1 piece
R&D Marine Clamping Hub 4" Ø40mm	CF165-40	4"	40	82.5	8720193045511	No	1 piece
R&D Marine Clamping Hub 5" Ø30mm	CF171-30	5"	30	107.95	8720193045528	No	1 piece
R&D Marine Clamping Hub 5" Ø35mm	CF171-35	5"	35	107.95	8720193045535	No	1 piece
R&D Marine Clamping Hub 5" Ø40mm	CF171-40	5"	40	107.95	8720193045542	No	1 piece
R&D Marine Clamping Hub 5" Ø45mm	CF171-45	5"	45	107.95	8720193045559	No	1 piece
R&D Marine Clamping Hub 5" Ø50mm	CF171-50	5"	50	107.95	8720193045566	No	1 piece
R&D Marine Clamping Hub Yanmar 4" Ø25mm	CF257-25-YANMA	4" (Yanmar)	25	78	8720193045573	No	1 piece
R&D Marine Clamping Hub Yanmar 4" Ø30mm	CF257-30-YANMA	4" (Yanmar)	30	78	8720193045580	No	1 piece
R&D Marine Clamping Hub Yanmar 4" Ø35mm	CF257-35-YANMA	4" (Yanmar)	35	78	8720193045597	No	1 piece
R&D Marine Clamping Hub Yanmar 4" Ø40mm	CF257-40-YANMA	4" (Yanmar)	40	78	8720193045603	No	1 piece
R&D Marine Clamping Hub Yanmar 5" Ø30mm	CF300-30-YANMA	5" (Yanmar)	30	100	8720193045610	No	1 piece
R&D Marine Clamping Hub Yanmar 5" Ø35mm	CF300-35-YANMA	5" (Yanmar)	35	100	8720193045627	No	1 piece
R&D Marine Clamping Hub Yanmar 5" Ø40mm	CF300-40-YANMA	5" (Yanmar)	40	100	8720193045634	No	1 piece
R&D Marine Clamping Hub Yanmar 5" Ø45mm	CF300-45-YANMA	5" (Yanmar)	45	100	8720193045641	No	1 piece
R&D Marine Clamping Hub Yanmar 5" Ø50mm	CF300-50-YANMA	5" (Yanmar)	50	100	8720193045658	No	1 piece
