Tides Marine Hose Tee Fittings

ID 1350959

$ 64.61

1-2 weeks delivery time

Size, mm:

3/8"x3/8"x3/8"
1/2"x3/8"x1/2"
5/8"x3/8"x5/8"
1"x3/8"x1"
3/4"x3/8"x3/4"
1 1/4"x3/8"x1 1/4"
1 1/2"x3/8"x1 1/2"

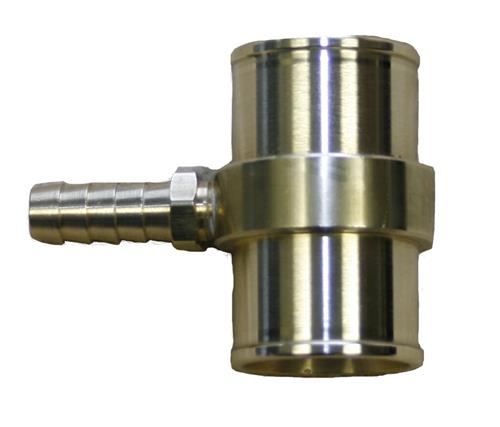

The Tides Marine Hose Tee Fittings (TH series) are compact yellow brass tee connectors designed to reduce the size and complexity of branch hose connections in marine plumbing. They are an integral component of the Tides Marine water pick-up kit and are selected by matching the main hose inside diameter, branch hose diameter, and the overall part length specified for each tee.

Description
Ask a Question

Tides Marine Hose Tee Fittings – Yellow Brass Water Pick-Up Tee (TH Series)

Tides Marine Hose Tee Fittings are used to create compact and reliable branch hose connections while reducing plumbing complexity. These tee fittings are an integral part of the Tides Marine water pick-up kit and are machined from corrosion-resistant yellow brass.

How to select the correct Tee

Choose the tee by matching the main hose inside diameter (ID) and the branch hose diameter.
Confirm the part length listed for the selected item.

Tee fitting specifications (dimensions in inches)

Main Hose ID	Part Length	Branch Diameter	Part Number
3/8	1 7/8	3/8	TH0375-3/8-.275
1/2	1 7/8	3/8	TH0500-3/8-.218
5/8	1 7/8	3/8	TH0625-3/8-.218
3/4	1 7/8	3/8	TH0750-3/8-.218
1	1 7/8	3/8	TH1000-3/8-.218
1 1/4	1 7/8	3/8	TH1250-3/8-.218
1 1/2	1 7/8	3/8	TH1500-3/8-.218
1 5/8	1 7/8	3/8	TH1625-3/8-.218
1 3/4	2	3/8	TH1750-3/8-.218
2	2 1/2	3/8	TH2000-3/8-.218

Product identifiers (where provided)

TH0375-3/8-218 – EAN: 8720193082202
TH0500-3/8-218 – EAN: 8720193082219
TH0625-3/8-218 – EAN: 8720193082226
TH0750-3/8-218 – EAN: 8720193076614
TH1000-3/8-218 – EAN: 8720193076621
TH1250-3/8-218 – EAN: 8720193076638
TH1500-3/8-218 – EAN: 8720193082240
