The Aquadrive HDL60.700 Flanged Heavy Duty Line system is a high-capacity marine propulsion anti-vibration system with integrated thrust bearing and flanged shaft connection designed for powerful propulsion installations. It transfers propeller thrust directly to the vessel structure while isolating engine vibration and protecting the gearbox from axial loads. Maximum torque 12,240 Nm, maximum shaft speed 1700 rpm, and maximum propeller thrust 40 kN.

Description
Ask a Question

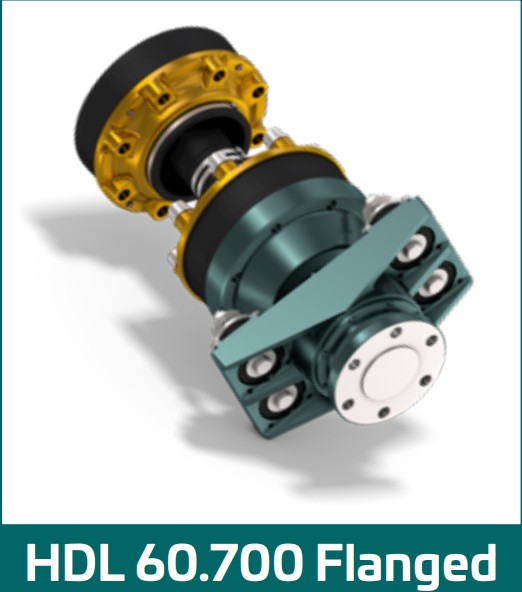

Aquadrive HDL60.700 Flanged – Heavy Duty Line Anti-Vibration Thrust Bearing System, Max Torque 12240 Nm

The Aquadrive HDL60.700 Flanged is part of the Aquadrive Heavy Duty Line (HDL), engineered to prevent propeller thrust and drivetrain vibrations from being transmitted to the engine and vessel hull. The system combines a thrust bearing housing with a constant velocity (CV) joint, allowing the engine to move freely on flexible mounts while the propeller thrust loads are absorbed by the Aquadrive unit mounted directly to the vessel structure.

This configuration reduces vibration and structural noise, improves onboard comfort, and simplifies engine alignment during installation. The system uses the CV60 constant velocity joint and a flanged output connection suitable for high-torque marine propulsion installations.

Key Features
- Heavy Duty Line anti-vibration propulsion system
- Integrated thrust bearing housing for propeller thrust absorption
- Flanged output connection for propulsion shaft
- Uses CV60 constant velocity joint
- Reduces vibration and noise transmitted to the hull
- Allows flexible engine movement on resilient mounts
- Simplifies propulsion system alignment

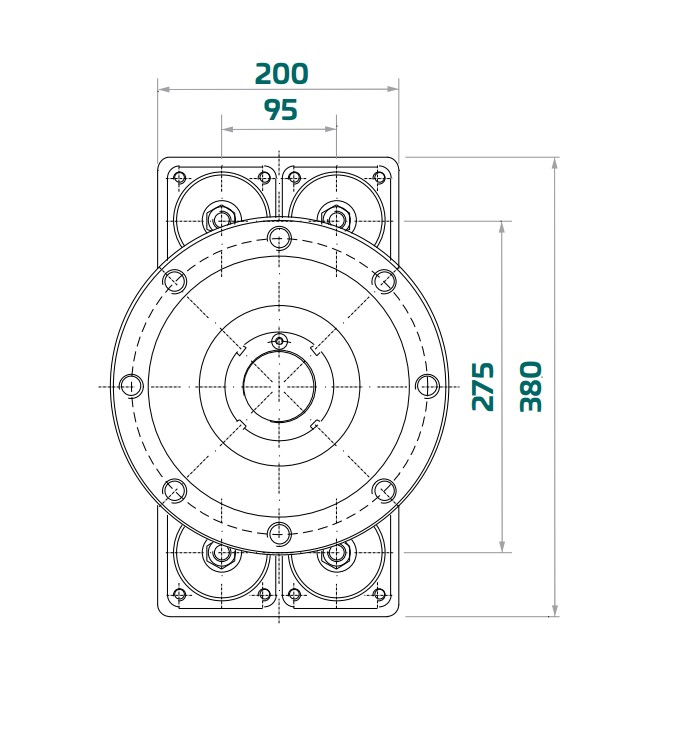

Technical Specifications

Model HDL60.700 Flanged

CV Joint Type CV60

Maximum Static Torque 12240 Nm (9060 lbft)

Maximum Propeller Shaft Speed 1700 rpm

Maximum Propeller Thrust 40 kN (9000 lbf)

Driveshaft Information
- Custom-length CV60 driveshaft available

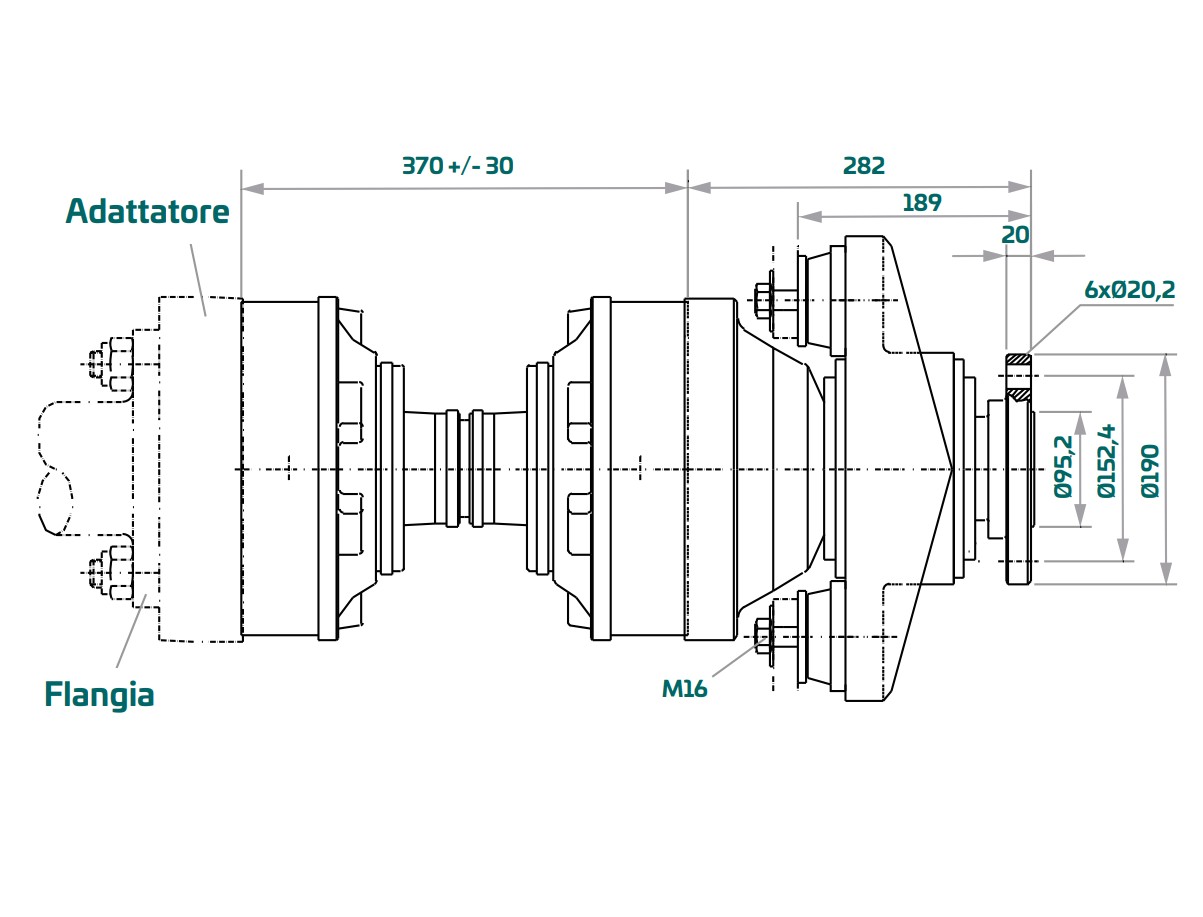

- Minimum driveshaft length: 370 mm

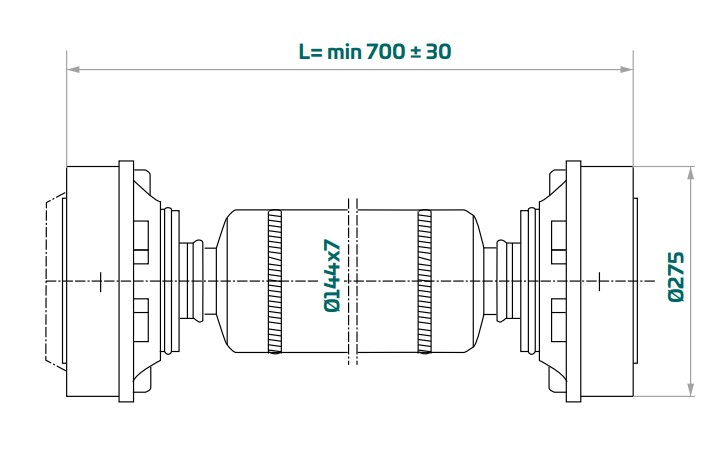

- Minimum length with tube shaft design: 700 mm
- Maximum length depends on shaft rpm
Application Examples

Boat Type Rated Power Crankshaft RPM Gearbox Ratio

Displacement boat 370 kW (500 HP) 1900 rpm 2.7 : 1

Planing boat 660 kW (900 HP) 2300 rpm 1.75 : 1

Compatible Propeller Shaft Sizes
- 50 mm
- 2"
- 2¼"
- 60 mm
- 2½"
- 65 mm
- 70 mm
Notes
- Rated power examples are based on optimum operating conditions with a 2° angle for each CV joint.
- If the CV joint operates at an angle greater than 2°, the maximum permitted power must be reduced.
- Typical reduction is approximately 8–9% for each additional degree above 2°.
- The maximum allowable joint angle is 3–8° depending on shaft rpm.
- For higher bending angles, consultation with Aquadrive technical support is recommended.

Model	HDL60.700 Flanged
CV Joint Type	CV60
Maximum Static Torque	12240 Nm (9060 lbft)
Maximum Propeller Shaft Speed	1700 rpm
Maximum Propeller Thrust	40 kN (9000 lbf)

Boat Type	Rated Power	Crankshaft RPM	Gearbox Ratio
Displacement boat	370 kW (500 HP)	1900 rpm	2.7 : 1
Planing boat	660 kW (900 HP)	2300 rpm	1.75 : 1
