The Osculati Tin-Plated Copper Power Cable Lugs are manufactured from high-conductivity tin-plated copper for reliable low-resistance electrical connections in marine, automotive and industrial power systems. Designed for cable sizes from 10 mm² to 95 mm² and various stud-hole diameters, these heavy-duty terminals provide secure crimped connections for battery, inverter, charger and power distribution installations.
- Description
- Ask a Question
-

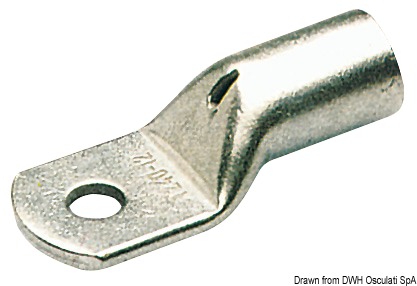

Osculati Tin-Plated Copper Power Cable Lugs – 10–95 mm² Cable, M6.4–M15 Stud
The Osculati Power Cable Lugs are manufactured from high-conductivity tin-plated copper to ensure excellent electrical performance and corrosion resistance in demanding marine environments. These crimp terminals are designed for professional installation on battery cables, inverter connections, charging systems, busbars and power distribution circuits.
The tin-plated finish provides enhanced protection against oxidation while maintaining low electrical resistance. Multiple cable sizes and stud-hole diameters are available to accommodate a wide range of marine electrical applications.
Key Features
- High-conductivity tin-plated copper construction
- Suitable for marine electrical systems
- Designed for crimp installation
- Low-resistance electrical connection
- Corrosion-resistant finish
- Available for cable sizes from 10 mm² to 95 mm²
- Multiple stud-hole diameters available
- Compatible with Osculati crimping tool 14.035.30
Available Variations
Osculati Code Cable Section Stud Hole (D4) Barrel Ø (D2) Length (L) 14.035.10 10 mm² 6.4 mm 4.7 mm 31 mm 14.035.11 10 mm² 8.3 mm 4.7 mm 30.5 mm 14.035.16 16 mm² 6.4 mm 5.6 mm 35 mm 14.035.17 16 mm² 8.3 mm 5.6 mm 31 mm 14.035.25 25 mm² 8.3 mm 7.1 mm 40 mm 14.035.26 25 mm² 10.5 mm 7.1 mm 40 mm 14.035.35 35 mm² 8.3 mm 8.2 mm 44 mm 14.035.36 35 mm² 10.3 mm 8.2 mm 44 mm 14.035.50 50 mm² 8.3 mm 9.5 mm 53 mm 14.035.51 50 mm² 10.3 mm 9.5 mm 53 mm 14.035.52 50 mm² 13 mm 9.5 mm 49 mm 14.035.70 70 mm² 10.5 mm 11.2 mm 57 mm 14.035.71 70 mm² 13.2 mm 11.2 mm 57 mm 14.035.90 95 mm² 13.4 mm 13.4 mm 57 mm 14.035.91 95 mm² 15 mm 13.4 mm 58 mm
Technical Specifications
Brand Osculati Material Tin-Plated Copper Terminal Type Power Cable Lug Installation Method Crimping Recommended Tool Osculati 14.035.30 Cable Range 10–95 mm² -
