Osculati Blow-Out Copper Cable Lug – 25–70 mm² Cable, M8–M12 Stud, Pack of 7

ID 1377068

$ 48.72

1-2 weeks delivery time

Type:

25 mm²
35 mm²
50 mm²
70 mm²

Item:

The Osculati Blow-Out Copper Cable Lug is designed for high-current battery and starter motor connections. Manufactured from copper and intended for installation using a battery cable hex crimping tool, these heavy-duty eye terminals are available for cable sections from 25 mm² to 70 mm² and stud sizes from M8 to M12.

Description
Ask a Question

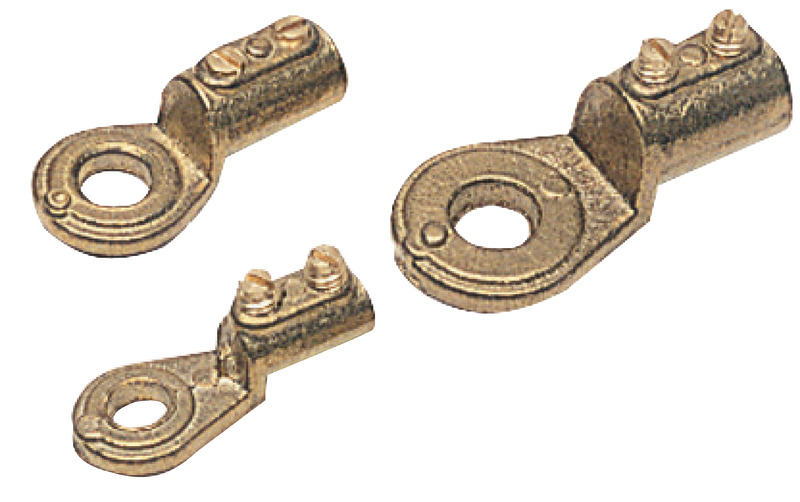

Osculati Blow-Out Copper Cable Lug – 25–70 mm² Cable, M8–M12 Stud

The Osculati Blow-Out Copper Cable Lug is designed for reliable high-current electrical connections in marine, automotive and industrial applications. Manufactured from copper and intended for use with battery and starter motor cables, these eye terminals provide a secure connection to battery terminals, busbars, starter motors and power distribution systems.

The terminals are installed using a battery cable hex crimping tool, ensuring a strong mechanical and electrical connection capable of handling high current loads.

Key Features

Heavy-duty copper cable lug
Eye terminal design
Suitable for battery and starter motor cables
Hex-crimp installation
High-current applications
Available for cable sizes from 25 mm² to 70 mm²
Available with M8, M10 and M12 mounting holes

Available Variations

Osculati Code	Stud Hole (d)	Barrel Ø (D)	Length (L)	Cable Section
14.034.00	8 mm	7 mm	47 mm	25 mm²
14.034.10	10 mm	9.2 mm	49 mm	35 mm²
14.034.20	10 mm	12 mm	60 mm	50 mm²
14.034.30	12 mm	13 mm	60 mm	70 mm²

Technical Specifications

Brand	Osculati
Material	Copper
Terminal Type	Eye Terminal / Cable Lug
Installation Method	Hex Crimping
Application	Battery Cables, Starter Motor Cables, Power Distribution
