Osculati Tin-Plated Copper Butt Connectors for Power Cables, 4-95 mm²

ID 1377093

$ 1.28

1-2 weeks delivery time

Type:

10 mm²
16 mm²
25 mm²
35 mm²
50 mm²
70 mm²
95 mm²
4/6 mm²

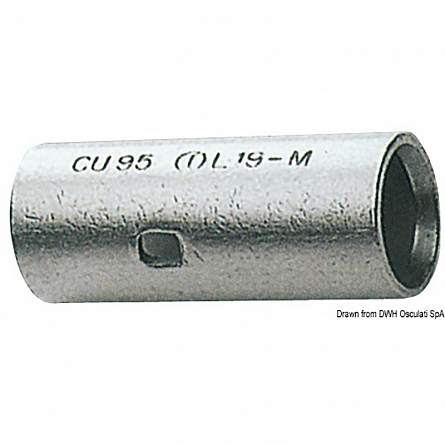

The Osculati 14.036.xx series includes heavy-duty butt connectors manufactured from high-conductivity tin-plated copper for joining power cables. Designed for marine, automotive, and industrial electrical systems, these connectors are available for cable cross-sections from 4-6 mm² up to 95 mm².

Description
Ask a Question

Osculati 14.036.xx – Tin-Plated Copper Butt Connectors for Power Cables, 4-95 mm²

The Osculati 14.036.xx series consists of heavy-duty butt connectors designed for joining electrical power cables. Manufactured from high-conductivity tin-plated copper, these connectors provide reliable electrical continuity and corrosion resistance in demanding marine and industrial environments.

Key Features

Heavy-duty butt connectors for power cables
Manufactured from high-conductivity tin-plated copper
Suitable for marine, automotive, and industrial electrical systems
Designed for secure cable-to-cable connections
Available for cable sizes from 4-6 mm² to 95 mm²
Corrosion-resistant construction

Available Variations

Osculati Code	Cable Cross-Section (mm²)	Connector Length (mm)
14.036.06	4-6	25.5
14.036.10	10	30
14.036.16	16	32.5
14.036.25	25	35.5
14.036.35	35	40.5
14.036.50	50	40.5
14.036.70	70	45.5
14.036.95	95	50.5

Technical Specifications

Brand	Osculati
Series	14.036.xx
Product Type	Butt Connector / Cable Joint
Material	Tin-Plated Copper
Application	Power Cable Connections
Cable Range	4-95 mm²

Applications

Suitable for extending, repairing, or joining battery cables and high-current electrical conductors in boats, yachts, vehicles, industrial equipment, and power distribution systems.
