WAGO 221 Series Lever Splicing Connectors and Mounting Carriers for 0.14-6 mm² Conductors

ID 1377102

$ 129.47

1-2 weeks delivery time

Type:

0.14-4 mm²
0.5-6 mm²
Inline Splicing Connector

Item:

2-Wire
3-Wire
5-Wire
Mounting Carrier
2-Wire 0.2-4 mm²

The WAGO 221 Series lever-operated splicing connectors provide fast, tool-free connection of solid, stranded, and fine-stranded conductors. The range includes 2-, 3-, and 5-conductor connectors for cable sizes from 0.14 to 6 mm², plus dedicated mounting carriers and inline connectors for professional marine, automotive, and electrical installations.

Description
Ask a Question

WAGO 221 Series Lever Splicing Connectors and Mounting Carriers for 0.14-6 mm² Conductors

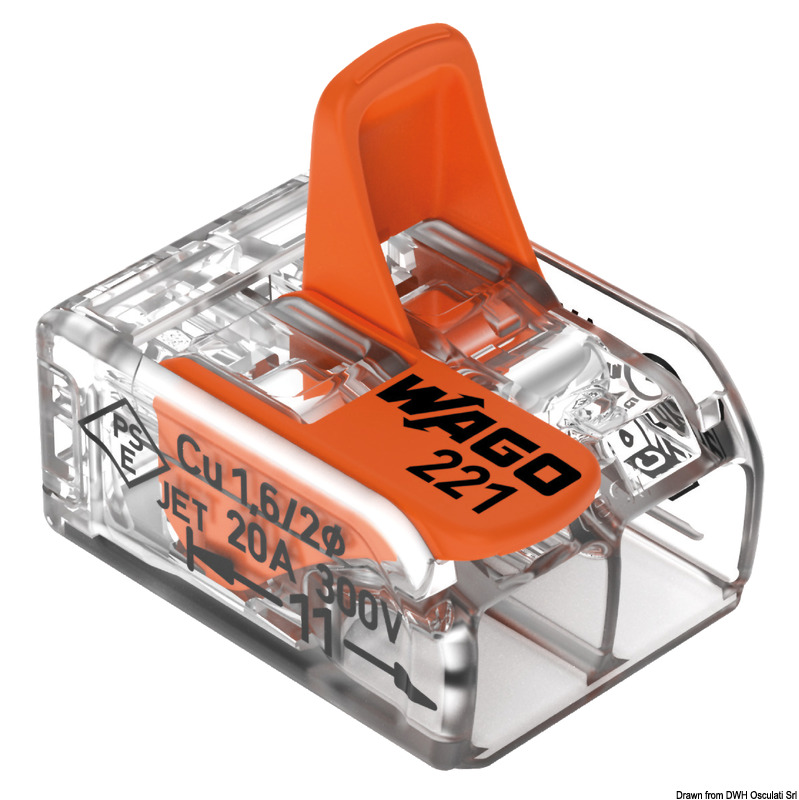

The WAGO 221 Series is a professional range of compact lever-operated splicing connectors designed for fast, safe, and tool-free electrical connections. Suitable for solid, stranded, and fine-stranded conductors, these connectors simplify installation while providing reliable electrical performance.

Simply lift the lever, insert the conductor, and close the lever to create a secure connection. The series also includes mounting carriers and inline connectors for organized installation in electrical panels, marine systems, vehicles, and industrial applications.

Key Features

Tool-free conductor connection
Suitable for solid, stranded, and fine-stranded conductors
Compact transparent housing for easy inspection
Available in 2-, 3-, and 5-conductor versions
Compatible with conductor sizes from 0.14 mm² to 6 mm²
Mounting carriers available for DIN rail or surface mounting
Maximum ambient temperature: 85°C

Available Variations

Osculati Code	WAGO Code	Description	Conductors	Cable Size (mm²)
14.286.24	221-412	COMPACT Connector 4 mm²	2	0.14-4
14.286.34	221-413	COMPACT Connector 4 mm²	3	0.14-4
14.286.54	221-415	COMPACT Connector 4 mm²	5	0.14-4
14.286.50	221-500	Mounting Carrier for 4 mm² Connectors	-	-
14.286.26	221-612	COMPACT Connector 6 mm²	2	0.5-6
14.286.36	221-613	COMPACT Connector 6 mm²	3	0.5-6
14.286.56	221-615	COMPACT Connector 6 mm²	5	0.5-6
14.286.51	221-510	Mounting Carrier for 6 mm² Connectors	-	-
14.286.42	221-2411	Inline Connector 4 mm²	2	0.2-4

Technical Specifications

Brand	WAGO
Series	221
Connection Type	Lever-Operated Splicing Connector
Compatible Conductors	Solid, Stranded and Fine-Stranded
Maximum Ambient Temperature	85°C
Mounting Options	DIN Rail or Surface Mount (with Carrier)

Applications

Suitable for marine electrical systems, automotive wiring, switchboards, control panels, battery installations, lighting systems, and general low-voltage electrical distribution where fast, reliable, and serviceable conductor connections are required.
