ID
1374576
$ 19.40
1-2 weeks delivery time
Type:
- Chromed Brass
- Yellow Brass
The Osculati 17.323 / 17.423 Series Skin Fittings are manufactured from brass and available in both yellow brass and chromed brass versions. Designed for marine through-hull installations, these fittings combine a rounded-head skin fitting with an integrated hose connector. Available in sizes from 3/8" x 15 mm to 2" x 55 mm, with lengths from 55 mm to 92 mm and head diameters from 35 mm to 83 mm, they are suitable for water intake, discharge, drainage, and onboard plumbing systems.
- Description
- Ask a Question
-
Osculati 17.323 / 17.423 Series – Brass Skin Fitting with Rounded Head and Hose Connector, 3/8" x 15 mm to 2" x 55 mm
The Osculati 17.323 / 17.423 Series Skin Fittings are designed for marine through-hull installations requiring a direct hose connection. Manufactured from brass and available in both yellow brass and chromed brass versions, these fittings combine a rounded-head through-hull fitting with an integrated hose tail for straightforward installation.
The fully threaded body and hose connector design make these fittings suitable for seawater, freshwater, drainage, bilge, and general onboard plumbing systems.
Key Features
- Brass construction
- Available in chromed brass and yellow brass versions
- Rounded head design
- Integrated hose connector
- Suitable for marine through-hull installations
- Designed for direct hose connection
- Available in multiple thread and hose size combinations

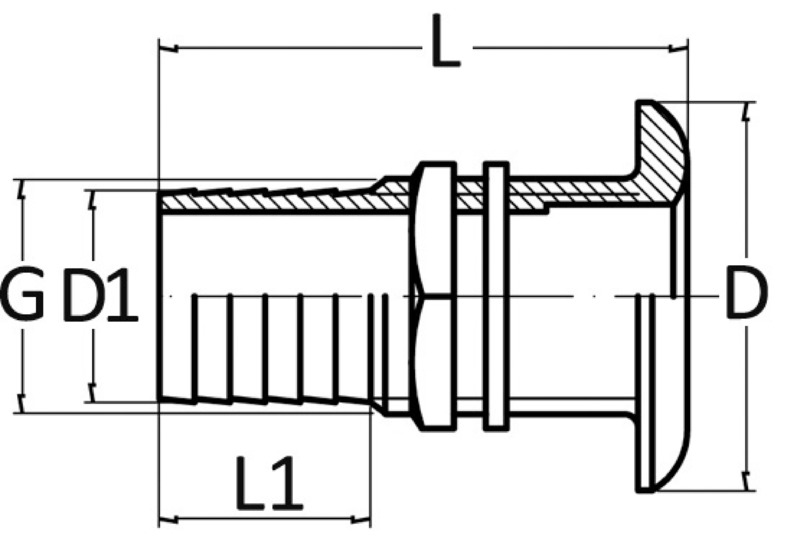

Technical Specifications
Thread x Hose Size Chromed Brass Code Yellow Brass Code L (mm) L1 (mm) D (mm) G (mm) 3/8" x 15 mm 17.423.00 17.323.00 55 20 35 17 1/2" x 19 mm 17.423.01 17.323.01 65 25 40 21 3/4" x 25 mm 17.423.02 17.323.02 65 30 48 26 1" x 30 mm 17.423.03 17.323.03 70 31 55 33 1-1/4" x 38 mm 17.423.04 17.323.04 80 31 65 42 1-1/2" x 45 mm 17.423.05 17.323.05 80 31 70 48 2" x 55 mm 17.423.06 17.323.06 92 31 83 60
Available Versions
- Chromed Brass
- Yellow Brass
Applications
- Marine through-hull installations
- Water intake systems
- Drainage systems
- Bilge discharge systems
- Seawater circulation systems
- Livewell and washdown installations
- General onboard plumbing applications
Dimensions
- Thread sizes: 3/8" to 2"
- Hose sizes: 15 mm to 55 mm
- Overall length (L): 55 mm to 92 mm
- Hose tail length (L1): 20 mm to 31 mm
- Head diameter (D): 35 mm to 83 mm
- Internal diameter (G): 17 mm to 60 mm
-
