Osculati Chromed Brass Skin Fitting with Flat Head and Hose Connector

ID 1374591

$ 20.57

1-2 weeks delivery time

Size:

3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"

The Osculati 17.424 Series Skin Fittings are manufactured from chromed brass and designed for marine through-hull installations with direct hose connections. Featuring a flat head design and integrated hose connector, these fittings are available in sizes from 3/8" x 15 mm to 2" x 55 mm, with overall lengths from 55 mm to 100 mm, head diameters from 35 mm to 83 mm, and head thicknesses from 5 mm to 8 mm.

Description
Ask a Question

Osculati 17.424 Series – Chromed Brass Skin Fitting with Flat Head and Hose Connector, 3/8" x 15 mm to 2" x 55 mm

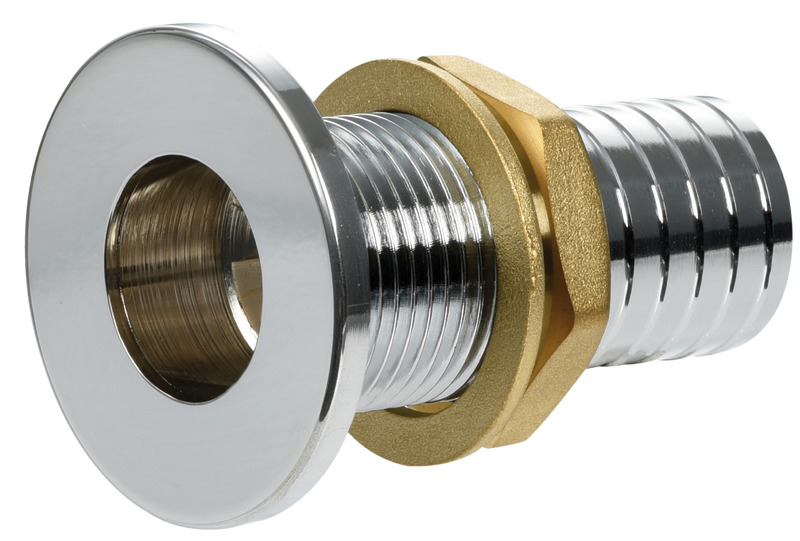

The Osculati 17.424 Series Skin Fittings are manufactured from chromed brass and designed for marine through-hull installations requiring a direct hose connection. The flat head profile provides a clean external finish, while the integrated hose tail allows secure connection to flexible marine hoses.

These fittings are suitable for water intake, drainage, bilge discharge, and general onboard plumbing systems where a through-hull fitting and hose connector are required in a single component.

Key Features

Chromed brass construction
Flat head design
Integrated hose connector
Suitable for marine through-hull installations
Designed for direct hose connection
Corrosion-resistant chromed finish
Available in multiple thread and hose size combinations

Technical Specifications

Osculati Code	Thread x Hose Size	L (mm)	L1 (mm)	D (mm)	G (mm)	S (mm)
17.424.00	3/8" x 15 mm	55	20	35	17	5
17.424.01	1/2" x 19 mm	65	20	40	21	5
17.424.02	3/4" x 25 mm	70	25	48	26	5
17.424.03	1" x 30 mm	75	25	55	33	5
17.424.04	1-1/4" x 38 mm	85	30	65	42	5
17.424.05	1-1/2" x 45 mm	85	30	70	48	6
17.424.06	2" x 55 mm	100	31	83	60	8

Applications

Marine through-hull installations
Water intake systems
Drainage systems
Bilge discharge systems
Seawater circulation systems
Livewell and washdown installations
General onboard plumbing applications

Dimensions

Thread sizes: 3/8" to 2"
Hose sizes: 15 mm to 55 mm
Overall length (L): 55 mm to 100 mm
Hose tail length (L1): 20 mm to 31 mm
Head diameter (D): 35 mm to 83 mm
Internal diameter (G): 17 mm to 60 mm
Head thickness (S): 5 mm to 8 mm
