Osculati Brass All-Thread Skin Fitting with Flared Head, 3/8" to 2"

ID 1374561

$ 18.74

1-2 weeks delivery time

Type:

Chromed Brass
Yellow Brass

Size:

3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"

The Osculati 17.324 Series All-Thread Skin Fittings are manufactured from brass and available in both chromed brass and yellow brass versions. Featuring a flared head design and a fully threaded body, these through-hull fittings are suitable for marine water intake, discharge, and drainage systems. Available in thread sizes from 3/8" to 2", with lengths from 55 mm to 100 mm and head diameters from 35 mm to 83 mm.

Description
Ask a Question

Osculati 17.324 Series – Brass All-Thread Skin Fitting with Flared Head, 3/8" to 2"

The Osculati 17.324 Series Skin Fittings are manufactured from brass and designed for marine through-hull installations. The flared head profile provides a distinctive finish while the fully threaded body allows secure installation across a wide range of hull thicknesses.

Available in both chromed brass and yellow brass versions, these fittings are suitable for water intake, discharge, drainage, and general onboard plumbing systems.

Key Features

Brass construction
Available in chromed brass and yellow brass versions
Flared head design
Fully threaded body
Suitable for marine through-hull installations
Designed for water intake and discharge systems
Available in thread sizes from 3/8" to 2"

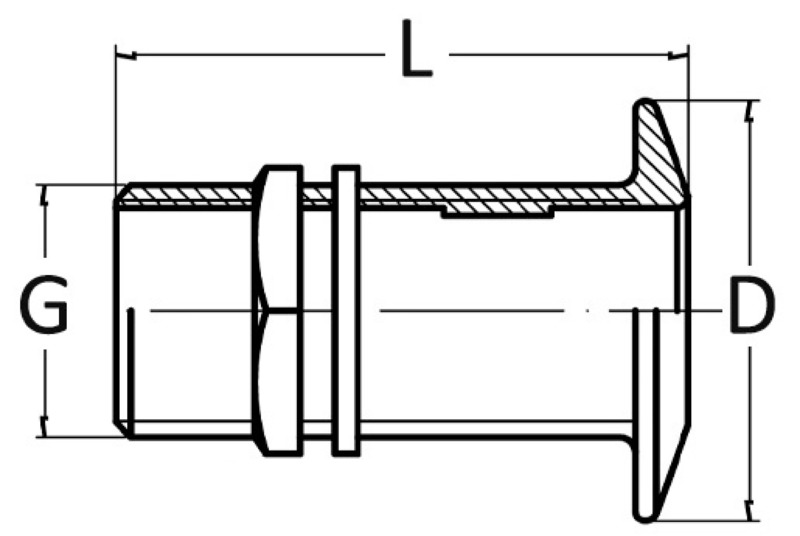

Technical Specifications

Thread Size	Chromed Brass Code	Yellow Brass Code	L (mm)	D (mm)	G (mm)
3/8"	17.324.40	17.324.30	55	35	17
1/2"	17.324.41	17.324.31	65	40	21
3/4"	17.324.42	17.324.32	70	48	26
1"	17.324.43	17.324.33	75	55	33
1-1/4"	17.324.44	17.324.34	85	65	42
1-1/2"	17.324.45	17.324.35	85	70	48
2"	17.324.46	17.324.36	100	83	60
