ID
1374546
$ 19.62
1-2 weeks delivery time
Type:
- Chromed Brass
- Yellow Brass
Size:
- 3/8"
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
The Osculati 17.324 Series All-Thread Skin Fittings are manufactured from brass and available in both chromed brass and yellow brass versions. Designed for marine through-hull installations, these fittings feature a flat head design and a fully threaded body. Available in thread sizes from 3/8" to 2", with lengths from 55 mm to 100 mm, flange diameters from 35 mm to 83 mm, and wall thicknesses from 5 mm to 8 mm, they are suitable for water intake, discharge, and onboard plumbing systems.
- Description
- Ask a Question
-
Osculati 17.324 Series – Brass All-Thread Skin Fitting with Flat Head, 3/8" to 2"
The Osculati 17.324 Series Skin Fittings are manufactured from brass and designed for marine through-hull applications. Featuring a flat head profile and a fully threaded body, these fittings provide a secure and professional installation for water intake, discharge, and drainage systems.
The series is available in both chromed brass and yellow brass versions, allowing the fitting to match the appearance and requirements of different marine installations.
Key Features
- Brass construction
- Available in chromed brass and yellow brass versions
- Flat head design
- Fully threaded body
- Suitable for marine through-hull installations
- Suitable for water intake and discharge systems
- Available in thread sizes from 3/8" to 2"
Technical Specifications
Thread Size Chromed Brass Code Yellow Brass Code L (mm) D (mm) G (mm) S (mm) 3/8" 17.324.10 17.324.00 55 35 17 5 1/2" 17.324.11 17.324.01 65 40 21 5 3/4" 17.324.12 17.324.02 70 48 26 5 1" 17.324.13 17.324.03 75 55 33 5 1-1/4" 17.324.14 17.324.04 85 65 42 6 1-1/2" 17.324.15 17.324.05 85 70 48 5 2" 17.324.16 17.324.06 100 83 60 8
Available Versions
- Chromed Brass
- Yellow Brass
Applications
- Marine through-hull installations
- Water intake systems
- Drainage systems
- Bilge discharge systems
- Seawater circulation systems
- General onboard plumbing applications

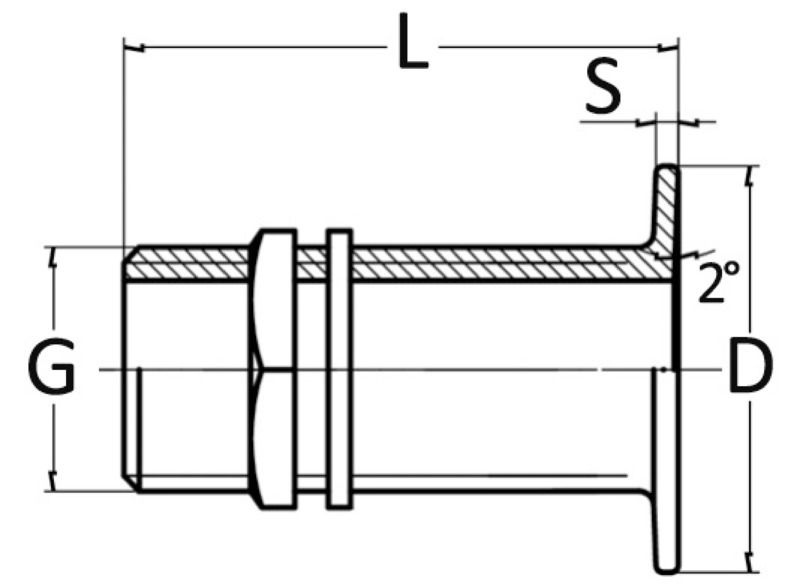

Dimensions
- Thread sizes: 3/8" to 2"
- Length (L): 55 mm to 100 mm
- Head diameter (D): 35 mm to 83 mm
- Internal diameter (G): 17 mm to 60 mm
- Head thickness (S): 5 mm to 8 mm
-
