ID
1313119
$ 33.94
1-2 weeks delivery time
-
+
The Flange DN 65 Internal Thread 2.1/2" is a galvanised Profec threaded flange combining a DIN flange with a female thread connection. It complies with DIN 2566 PN16, has four bolt holes, an outside diameter of 185 mm, and a thickness of 18 mm.
- Description
- Ask a Question
-

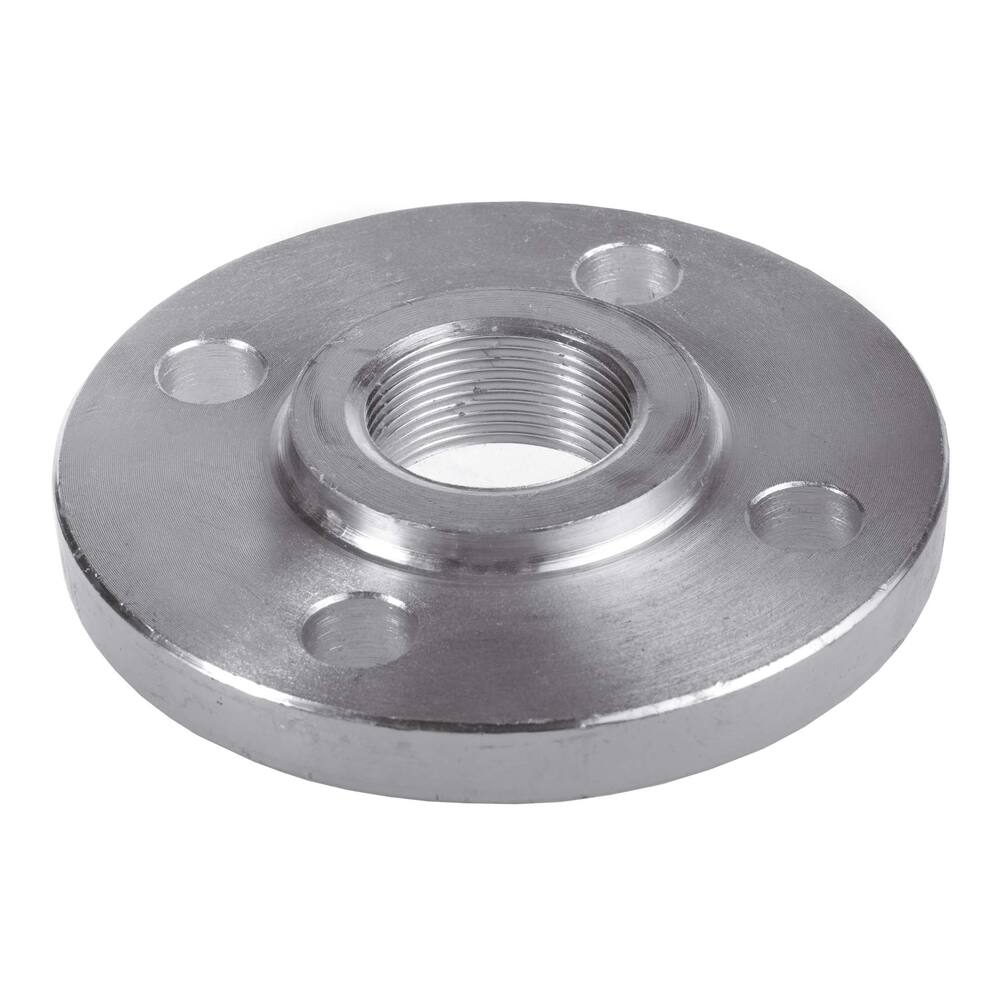

Flange DN 65 Internal Thread 2.1/2"
The Profec threaded flange is galvanised and features a DIN flange with a female thread connection. It complies with DIN 2566 PN16 and is available in various sizes.
- Product code: 86.90.063
- IMPA code: 735778
- Internal thread: 2.1/2"
- Bolt holes: 4
- Outside diameter: 185 mm
- Thickness: 18 mm
- Size: DN 65
- Material: Steel
- Pitch circle diameter: 145 mm
-
