ID
1313117
$ 25.70
1-2 weeks delivery time
-
+
The Flange DN 40 Internal Thread 1.1/2" is a galvanised Profec threaded flange combining a DIN flange with a female thread connection. It complies with DIN 2566 PN16, has four bolt holes, an outside diameter of 150 mm, and a thickness of 16 mm.
- Description
- Ask a Question
-

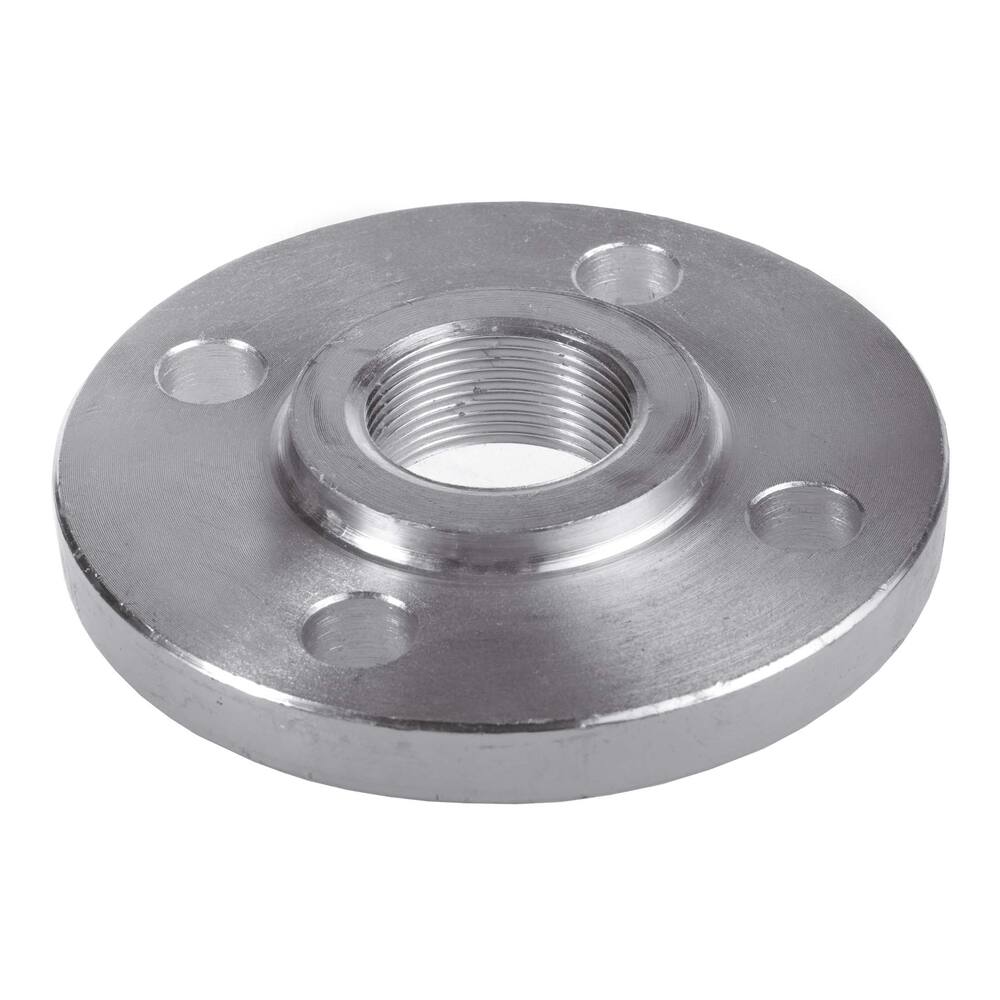

Flange DN 40 Internal Thread 1.1/2"
The Profec threaded flange is galvanised and features a DIN flange combined with a female thread connection. It complies with DIN 2566 PN16 and is available in various sizes.
- Product code: 86.90.038
- IMPA code: 735776
- Internal thread: 1.1/2"
- Bolt holes: 4
- Outside diameter: 150 mm
- Thickness: 16 mm
- Size: DN 40
- Material: Steel
- Pitch circle diameter: 110 mm
-
