ID
1374224
$ 24.59
1-2 weeks delivery time
Size:
- 3/8"
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 3"
The 316 Stainless Steel Full Port Ball Valve features a female x female threaded connection, full-flow design, and robust 2-piece construction. Manufactured from AISI 316 stainless steel with a stainless steel handle and ball, PTFE seals, and a maximum working pressure of 64 bar. Available in sizes from 3/8" to 2 1/2" for marine, industrial, and fluid handling applications.
- Description
- Ask a Question
-

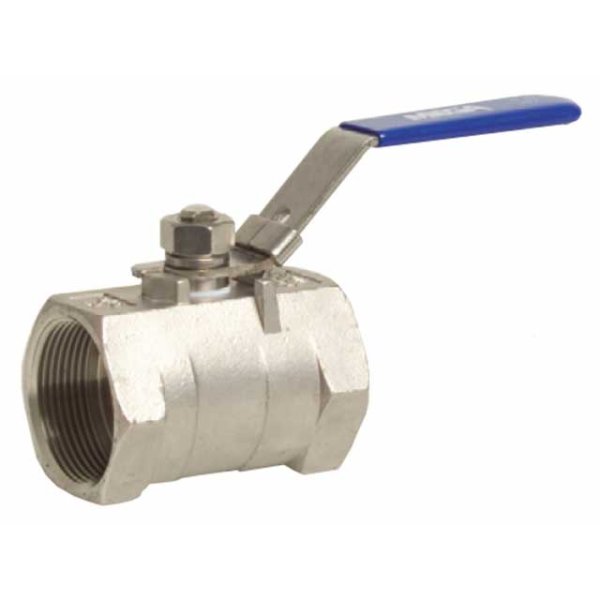

316 Stainless Steel Full Port Ball Valve Female x Female – 3/8" to 2 1/2", 64 Bar
This 2-piece full port ball valve is manufactured from AISI 316 stainless steel and designed for reliable shut-off and flow control in demanding marine and industrial environments. The valve features female x female threaded connections, a stainless steel operating handle, a stainless steel ball, and PTFE sealing components. The full-flow design minimizes pressure loss while ensuring maximum flow capacity through the valve.
Key Features
- AISI 316 stainless steel body
- Female x female threaded connection
- 2-piece valve construction
- Full port design for unrestricted flow
- 316 stainless steel ball
- 316 stainless steel handle
- PTFE sealing components
- Maximum working pressure: 64 bar
Available Variants
SKU Size 03606 3/8" 03607 1/2" 03608 3/4" 03610 1" 03612 1 1/4" 03614 1 1/2" 03615 2" 03616 2 1/2"
Technical Specifications
Parameter Specification Product Type Ball Valve Construction 2-Piece Connection Type Female x Female Thread Body Material AISI 316 Stainless Steel Ball Material AISI 316 Stainless Steel Handle Material Stainless Steel Seal Material PTFE Flow Design Full Port Working Pressure 64 bar Available Sizes 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2"
Applications
Suitable for marine plumbing systems, seawater installations, industrial process lines, water distribution systems, pumps, tanks, and other applications requiring a corrosion-resistant full-port shut-off valve.
-
