The Steel Weld Socket BSP Female Thread is designed for creating strong threaded pipe connections in welded piping systems. Manufactured from steel and compliant with BS1740 standards, it features a BSP female thread and is available in sizes from 1/8" to 6" with lengths from 17 mm to 92 mm.
- Description
- Ask a Question
-

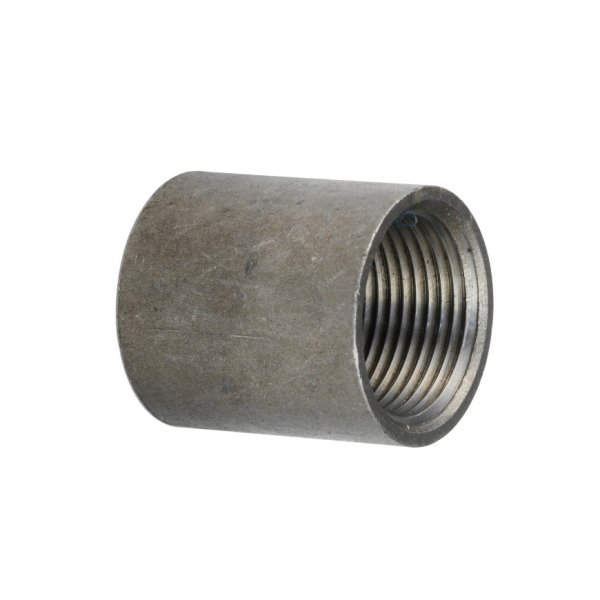

Steel Weld Socket BSP Female Thread – 1/8" to 6"
The Steel Weld Socket BSP Female Thread provides a reliable method for adding threaded connections to steel piping systems. Manufactured from steel and designed in accordance with BS1740 specifications, these weld sockets feature a BSP female thread connection and are suitable for industrial, marine, hydraulic, and general piping applications.
Key Features
- Manufactured from steel
- BSP female threaded connection
- Designed according to BS1740 standards
- Suitable for welding into pipe systems
- Strong and durable construction
- Available in a wide range of sizes
- Suitable for industrial and marine installations
Available Variants
SKU Thread Size Length 04200 1/8" 17 mm 04201 1/4" 26 mm 04202 3/8" 26 mm 04203 1/2" 34 mm 04204 3/4" 36 mm 04205 1" 43 mm 04206 1 1/4" 48 mm 04207 1 1/2" 48 mm 04208 2" 56 mm 04209 2 1/2" 65 mm 04210 3" 71 mm 04211 4" 83 mm 04212 5" 92 mm 04213 6" 92 mm
Technical Specifications
Parameter Specification Product Type Weld Socket Material Steel Thread Type BSP Female Standard BS1740 Thread Sizes 1/8" to 6" Length Range 17 mm to 92 mm
Applications
Suitable for welded pipe systems requiring BSP female threaded connections in industrial installations, marine systems, machinery, hydraulic equipment, and general fluid transfer applications.
-
