ID
1374271
$ 3.75
1-2 weeks delivery time
Size:
- 1/4"
- 1/8"
- 3/8"
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"
- 4"
Item:
- 18 mm
- 35 mm
- 42 mm
- 45 mm
- 26 mm
- 24.5 mm
- 33 mm
- 54.5 mm
- 63.5 mm
- 68.5 mm
- 76.5 mm
The Stainless Steel 316 Weld Socket BSP Female Thread is designed for creating durable threaded connections in welded piping systems. Manufactured from AISI 316 stainless steel and produced according to UNI EN ISO 228 standards, it features a BSP female thread connection and is available in sizes from 1/8" to 4" with lengths from 18 mm to 76.5 mm.
- Description
- Ask a Question
-

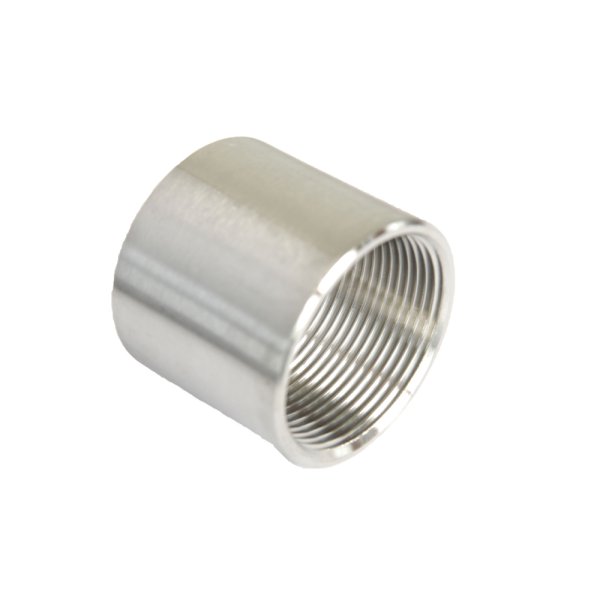

Stainless Steel 316 Weld Socket BSP Female Thread – 1/8" to 4"
The Stainless Steel 316 Weld Socket BSP Female Thread provides a reliable solution for incorporating BSP threaded connections into welded pipe systems. Manufactured from corrosion-resistant AISI 316 stainless steel, these fittings are produced according to UNI EN ISO 228 standards and serve as a replacement for ISO 7/1 and DIN 2999 threaded fittings.
Key Features
- Manufactured from AISI 316 stainless steel
- BSP female threaded connection
- Produced according to UNI EN ISO 228 standards
- Suitable replacement for ISO 7/1 and DIN 2999 fittings
- Designed for welded pipe installations
- Excellent corrosion resistance
- Suitable for marine, industrial, and process systems
Available Variants
SKU Thread Size Length Working Pressure 04300 1/8" 18 mm 16 bar 04301 1/4" 24.5 mm 16 bar 04302 3/8" 26 mm 16 bar 04303 1/2" 33 mm 16 bar 04304 3/4" 35 mm 16 bar 04305 1" 42 mm 16 bar 04306 1 1/4" 45 mm 16 bar 04307 1 1/2" 45 mm 16 bar 04308 2" 54.5 mm 16 bar 04309 2 1/2" 63.5 mm 10 bar 04310 3" 68.5 mm 10 bar 04311 4" 76.5 mm 10 bar
Technical Specifications
Parameter Specification Product Type Weld Socket Material Stainless Steel 316 Thread Type BSP Female Standards UNI EN ISO 226 / UNI EN ISO 228 Thread Sizes 1/8" to 4" Working Pressure 10–16 bar depending on size
Applications
Suitable for marine systems, industrial piping, water treatment installations, chemical processing equipment, and other applications requiring corrosion-resistant welded BSP threaded connections.
-
